High Accuracy Mini American Type Hose Clamp Making Machine Manufacturer Hose Clamp Automatic Assembly Machine In Competitive Price For Sale

Mini American jets hoop machine is currently the highest production of different types and sizes of hose clamps in the world degree of automation machinery . Our machines are non-standard customized products, which have the advantages of standardized production, lowest defect rate, higher final product quality and lower labor costs.
  • Item no.:

    SNW-H-06
  • Payment:

    FOB
  • Product origin:

    CHINA
  • Color:

    Grey
  • Shipping port:

    Xiamen
  • Lead Time:

    120days
Products description

High-precision mini American hose clamp making machine manufacturer hose clamp automatic assembly machine is sold at a competitive price



This  small American hose clamp machine can automatically assemble hose clamps through straight lines and turntables. All parts such as screws, connecting bars, clamps and hoses are assembled by rolling and locking by the machine. Sinuowei's machine and process control system is a new patented design, using fully automated cutting and stamping, welding and intelligent mold solution technology. Our hose clamp machine not only maximizes production efficiency and quality, but also reduces a lot of costs for hose clamp manufacturers. This machine is advanced, high level of automation, stable performance, wide adjustment range, high efficiency and good effect.

Hose clamp machine specifications

product name Hose clamp machine
size 2600mm (length) *1200mm (width) *1800mm (height)
weight 1 ton
working area 5000mm(length)*3000mm(width)
strength Single-phase power supply 115v, 60Hz (ANSI electrical standard)
pressure 0.5Mpa-0.7Mpa (72.5-101.5 PSI)
Free torsion <=0.4
Destructive torsion More than 13.56N/M (120 inches/lb)
Equipment failure rate
Less than 0.5%
efficient 1000 pcs/hour
warranty period One year
Extra service Professional technical training
Major component brands
Japan SMC, Germany SIEMENS, Japan Panasonic, Japan Keyence, France Schneider, Germany BASLER, Taiwan HIWIN.

Hose Clamping Machine Product Show

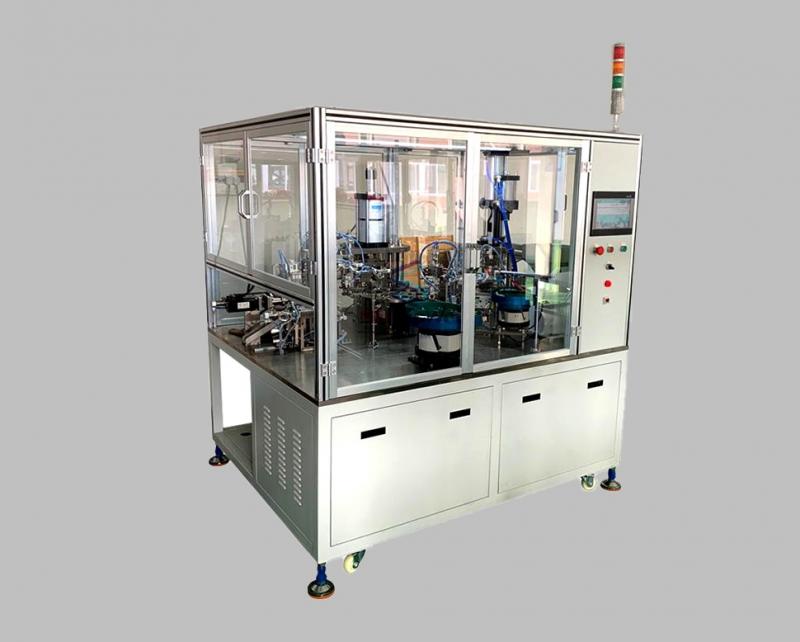

Efficient hose clamp making machine


1. We have sold hundreds of machines at home and abroad , and they are running well so far. Over time, our machines have become more precise, more efficient, and more stable.

2. We are professional in design and manufacture automatic assembly hose clamp machine with 10 years of experience . Our technology of automatic assembly hose clamp machine is mature and reliable.

3. The production efficiency is 1000pcs/hour more or less and working accuracy are all much higher than handmade, therefore satisfying the production requirements of new generation manufactures of hose clamp.

New hose clamp machine

4.  An automatic assembly hose clamp making machine can be designed as Multi-size according to client's requirement. Maybe two or four different sizes in one machine is available if the structure of clients' hose clamp allowed.

5. The same as another many parameters of machine, Free torque and broke torque of hose clamp can be customized. Our flexibility customization design to ensure all customer's requirements are met.

A new generation of hose clamp machine

6. Compared with the traditional manual control manner, this machine has many advantages such as stable and simple operation. Working content is only adding semi-finished product material on bin every 4 hours.

7. The production is controlled by PLC microcomputer which will records all data and it equipped with human-computer interface to make sure most all the technical parameters can be set on the touch screen.

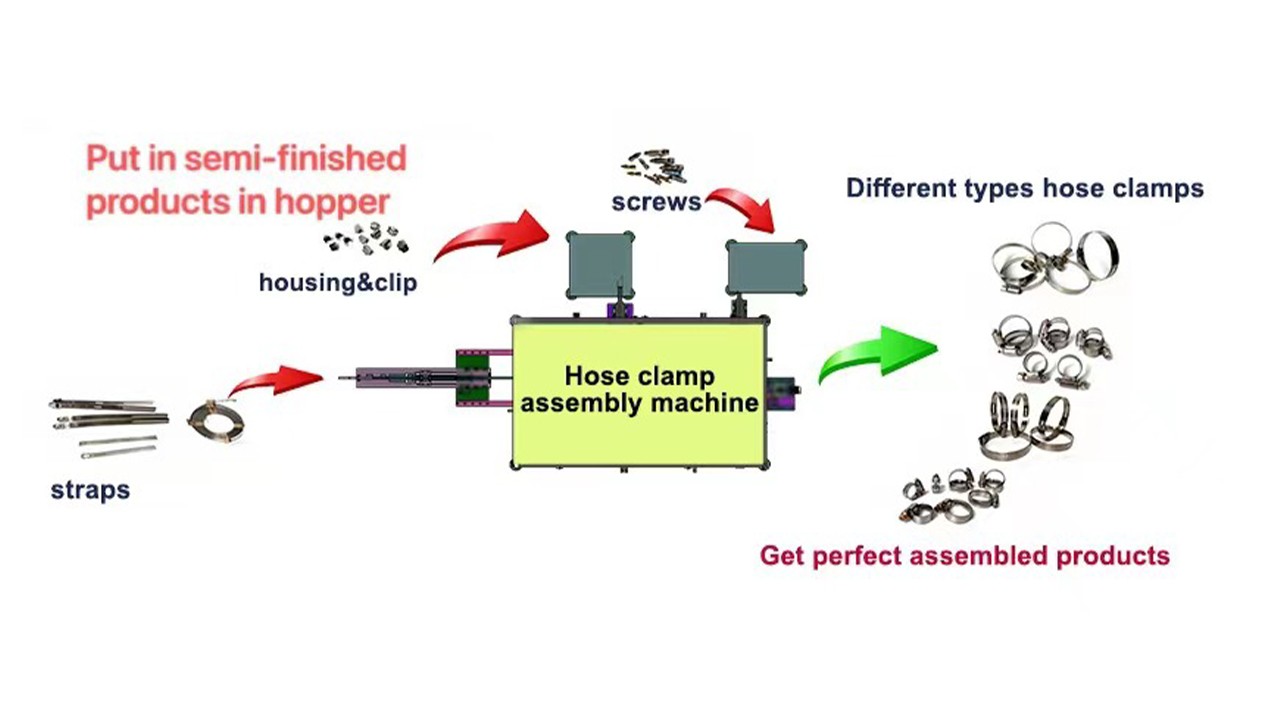

hose clamp machine workflow




  • The specific classification of hose clamp - Big American hose clamp machine;
  • The function of our machine is assembly three parts together and then inspect the quality to make sure the 100% good product.
  • We're not responsible for semi-finished making machines.
  • All the unassembled parts shall be provided by client.

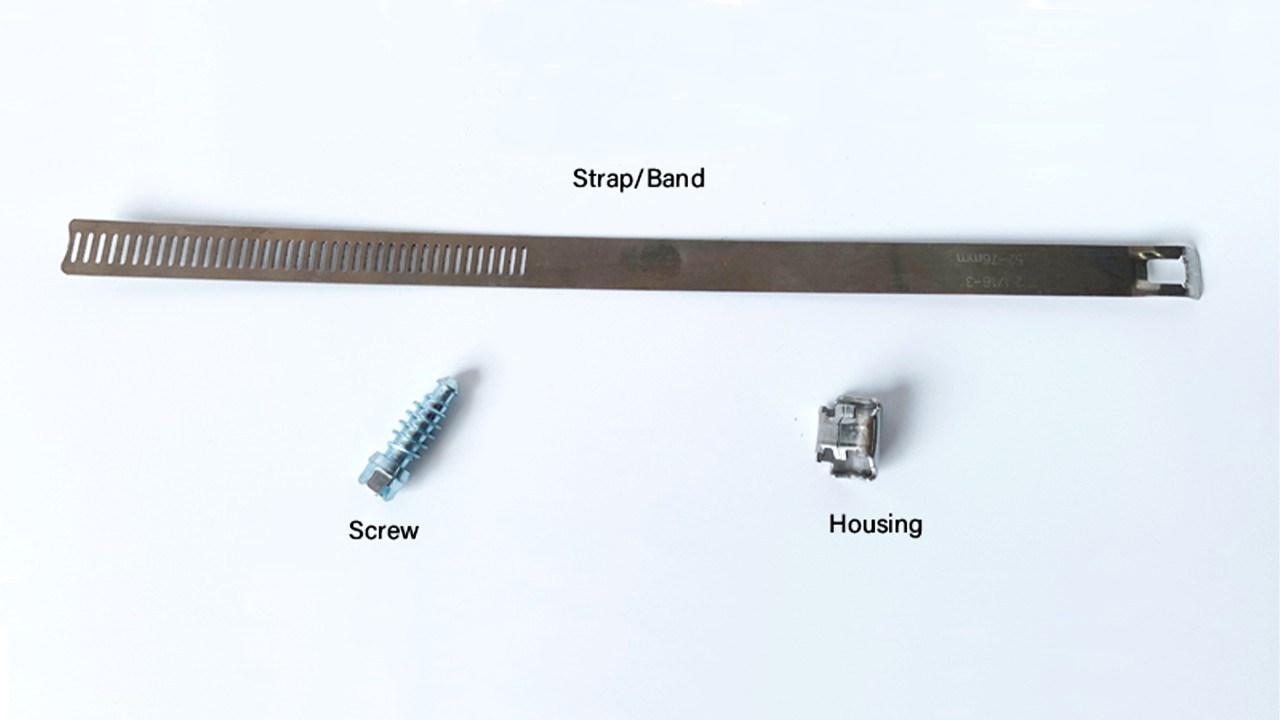

  • Unassembled parts:housing/strap/screw

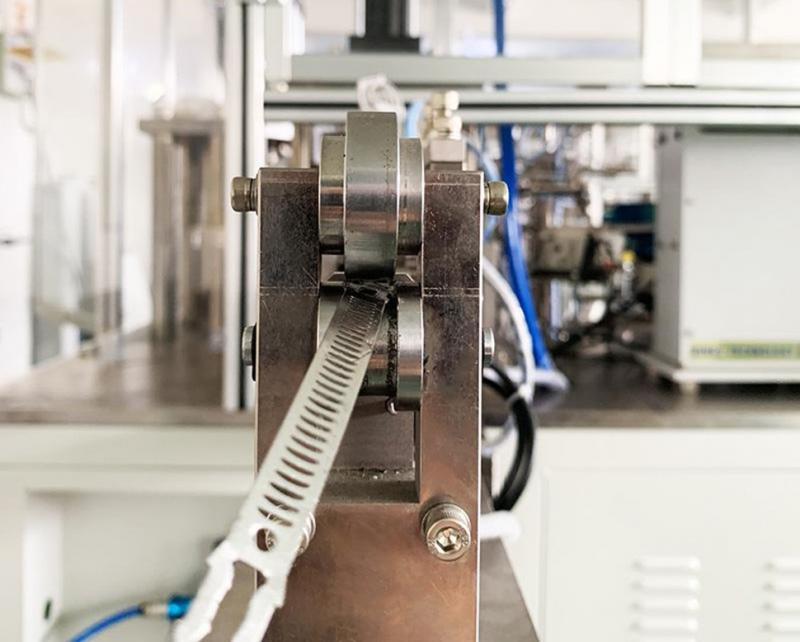

1. The strap will be transferred into the machine directly in one direction through the automatically flatting system. What follow is entering strap will be cut into right size and to be punch in right shape.

hose clamp machine step one
hose clamp machine step two

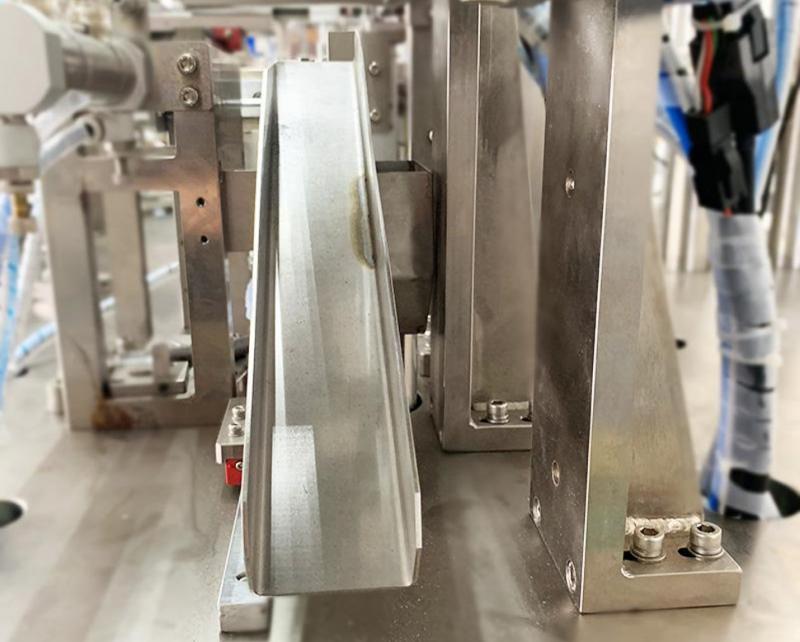

2. The housings and clip of hose clamp will be transferred into the machine directly in one direction as well by vibration linear feeder with bin. They will be installed into the punched and cut strap firmly.

3. The strap of hose clamp with housing and clip will be coiling by our machine in very perfect circle and to be fixed by tooling system and then transfer into next step smoothly.

hose clamp step three

hose clamp machine step four

4. The screw of hose clamp will be transferred into the machine directly in one direction by vibration linear feeder with bin. The screws to be tighten into the assembled strip of hose clamp with housing and clip.

5. After above steps, a hose clamp already completed. There are inspections system on the discharge outlet to recognize whether the finished product is locked tightly enough and the free torque is completely measures up to the requirement.

hose clamp step five

hose clamp machine step six

6. The final product is grabbed from the fixture and automatically divided into two categories, good and bad. Good products flow into the good product container, and bad products flow into the defective product container for collection.
