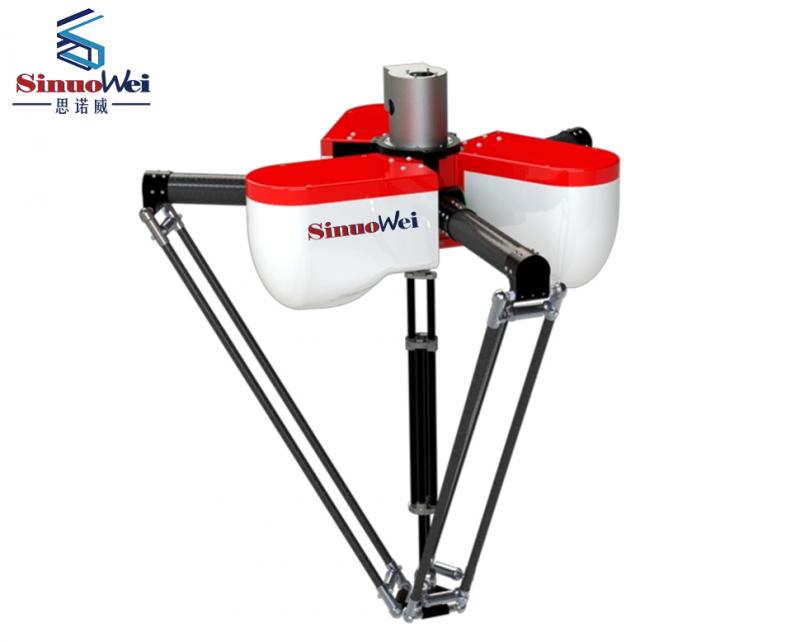

4 Axis Delta Parallel Spider Robot for Automation Food Pick and Place 3c

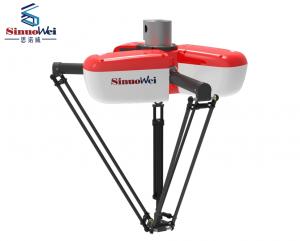

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-1100-P3 Axes 3+1 Payload 3kg Manipulator Weight 90.5kg Diameter 1100mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 600pp/min Rotation range ±360° Allowable maximum moment of inertia 80×10-4kg·m2 Angle range of actuated arm Up 24.5° Down 73.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

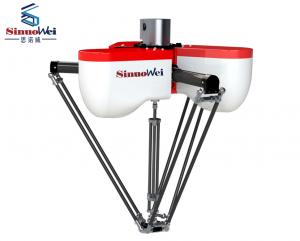

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-800-P3 Axes 3+1 Payload 3kg Manipulator Weight 88.8kg Diameter 800mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 600pp/min Rotation range ±360° Allowable maximum moment of inertia 31×10-4kg·m2 Angle range of actuated arm Up 30.2° Down 63.6° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 6KVA Rated Power 2.35kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

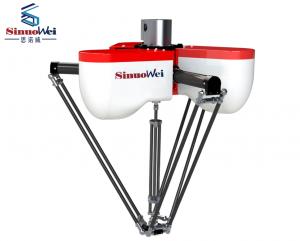

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-1300-P3 Axes 3+1 Payload 3kg Manipulator Weight 93.5kg Diameter 1300mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 544pp/min Rotation range ±360° Allowable maximum moment of inertia 80×10-4kg·m2 Angle range of actuated arm Up 24.6° Down 78.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

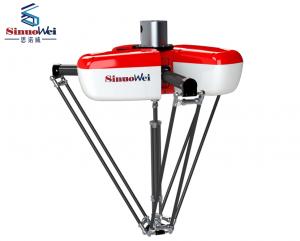

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-1600-P3 Axes 3+1 Payload 3kg Manipulator Weight 96.8kg Diameter 1600mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 500pp/min Rotation range ±360° Allowable maximum moment of inertia 80×10-4kg·m2 Angle range of actuated arm Up 28° Down 73° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

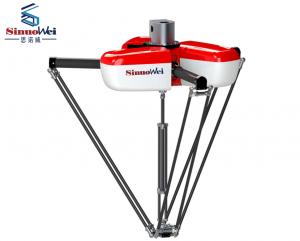

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-1100-P5 Axes 3+1 Payload 5kg Manipulator Weight 104kg Diameter 1100mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 400pp/min Rotation range ±360° Allowable maximum moment of inertia 250×10-4kg·m2 Angle range of actuated arm Up 27.5° Down 70° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.4kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

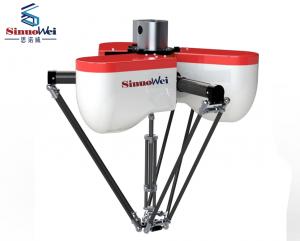

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S1PM-1300-P5 Axes 3+1 Payload 5kg Manipulator Weight 111kg Diameter 1300mm Repeatability Position 0.05mm Rotation 0.1° Maximum exercise frequency 500pp/min Rotation range ±360° Allowable maximum moment of inertia 250×10-4kg·m2 Angle range of actuated arm Up 27° Down 76° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.4kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55
