Automatic Reciprocating Machine

Products description

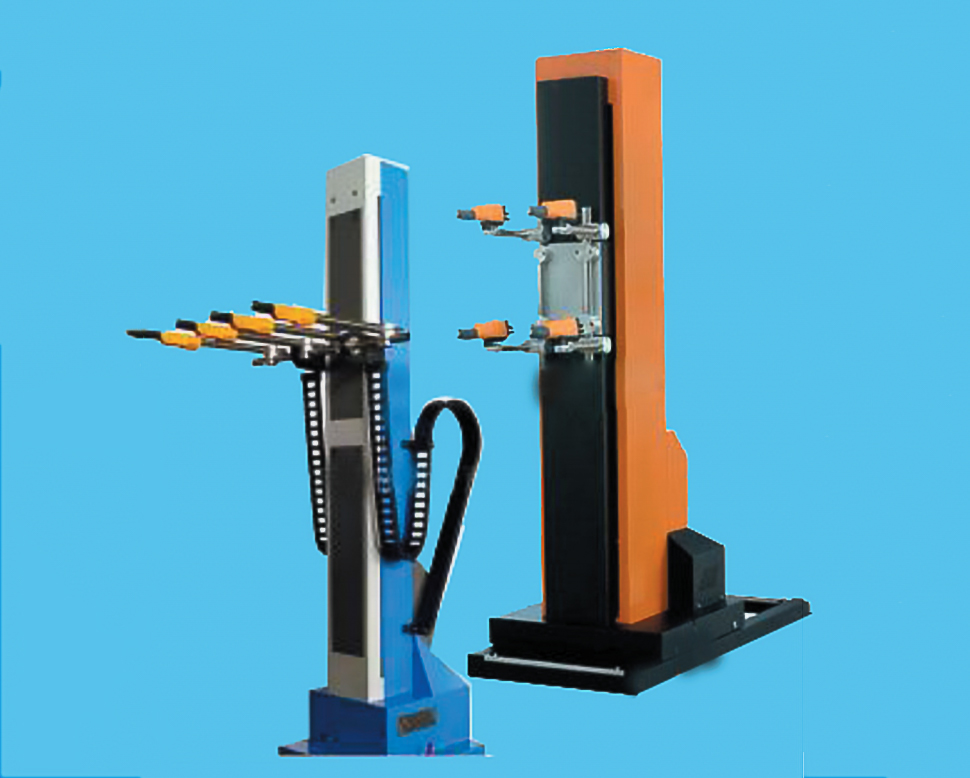

Automatic Reciprocating Machine


Features: with upper and lower limit automatic protection function

(1)Choose full Chinese digital display frequency conversion control system, easy to operate, easy to understand and learn.

(2)Non-wearing single-phase motor drive, simple maintenance.

(3)Stroke and number can be changed at any time according to the demand of workpiece.

(4)The whole machine is sprayed with plastic, and with tank track to take in and put out the pipeline.

(5)Suitable for powder spraying and painting and other high requirement spraying.

(6)Sound control program to ensure accurate positioning.

(7)Suitable for spraying workpieces in various complex environments and high process parameters.

Technical Characteristics and Detailed Analysis:
Painting special elevator is by the variable speed motor, high-speed guide, automatic frequency converter, positioner and other systems can be up and down reciprocating automatic spraying equipment. Automatic spray gun mounted on the end of the fixed bracket (single side can be installed 2-6 guns) spraying, according to the pre-programmed reciprocating spraying.
1、the speed is stepless adjustable (positive, return respectively adjustable), touch screen monitor, using digital display equipment operating conditions, operating methods and fault alarm and other functions. 2, can store 5 spraying guns.
2、can store 5 spraying workpiece process data. Power failure can be maintained for three years without re-entry process data.
3、Spraying workpiece can be sprayed at up to forty speeds and time delays during the lift stroke, thus improving the spraying quality of complex sprayed parts.
4、Optional control system can be linked with the conveyor chain and spray gun.
