MLCC capacitor cutting machine Multi-Layer Ceramic Capacitors cutting machine

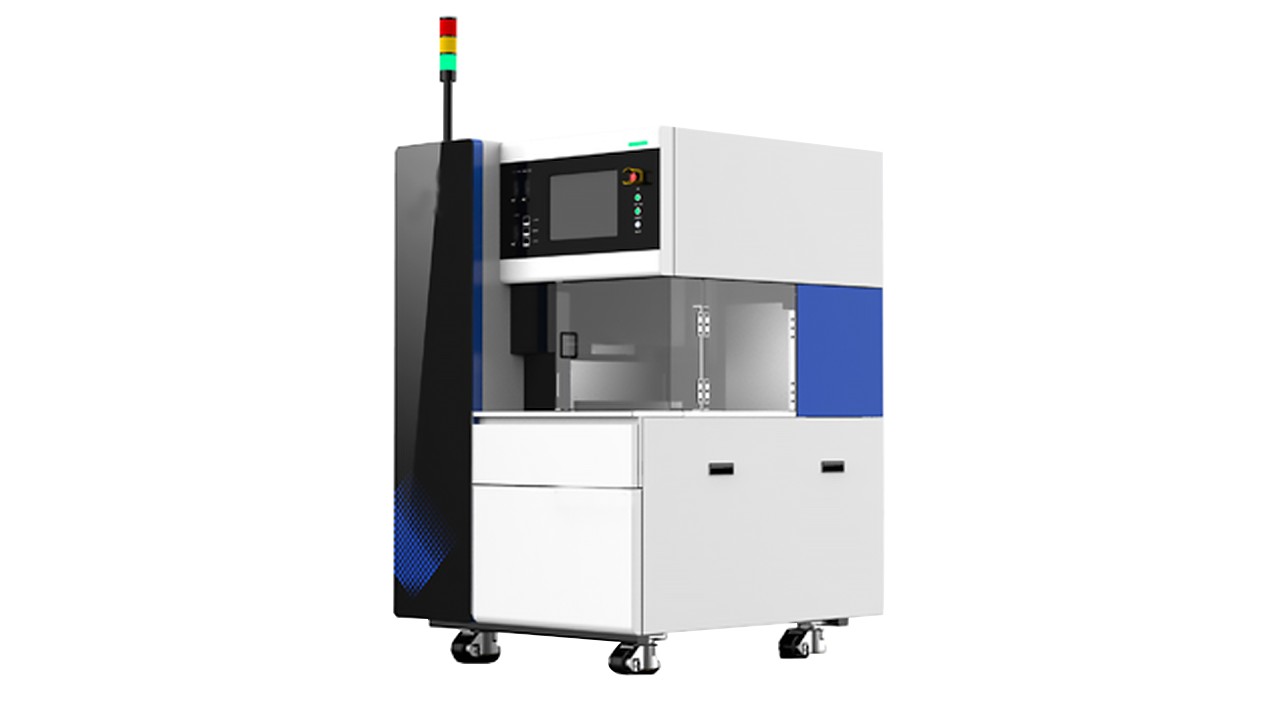

MLCC cutting machine Multi-Layer Ceramic Capacitors cutting machine

High precision Ceramic Cutting Machine MLCC/MLCI (Chip Capacitor/Inductor) this device is made for the continuous miniaturization of ceramic components in recent years, with high cost performance.

Products description

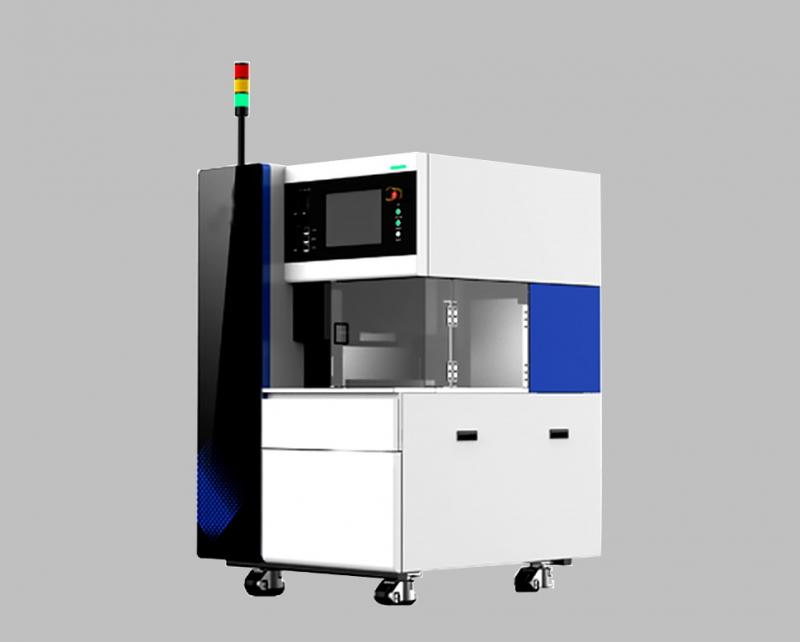

MLCC cutting machine Multi-Layer Ceramic Capacitors cutting machine

High precision Ceramic Cutting Machine MLCC/MLCI (Chip Capacitor/Inductor)


This device is made for the continuous miniaturization of ceramic components in recent years, with high cost performance.

Features

table Y-axis repetition accuracy: < + / - 1um.

full touch screen operation mode, simple and convenient operation.

reduce the pressure during cutting by means of air pressure balance.

cutting speed increased by 30% (compared with the old model).

can correspond to different sizes of ceramic blocks.

PARAMETER FORM

product name

MLCC cutting machine

model

CTL-501

size

1000mm (length) *1000mm (width) *1650mm (height)

weight

1100kg

blade size

140mm(length)*22.4mm(width)*0.1(thickness)

blade temperature

70°c

strength

Single-phase power supply220v+-10%,50Hz

pressure

0.5Mpa-0.0.65Mpa

cutting speed

8knife/s(max)

cutting thickness

5mm(max)

vacuum

90

rated current

28A

warranty period

One year

Extra service

Professional technical training

Major component brands

Japan SMC, Germany SIEMENS, Japan Panasonic, Japan Keyence, France Schneider, Germany BASLER, Taiwan HIWIN.

How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.
