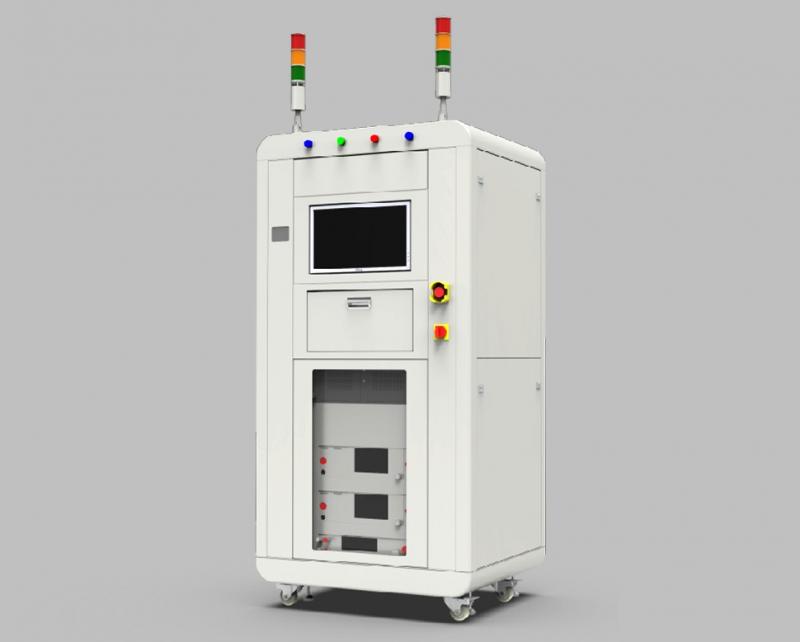

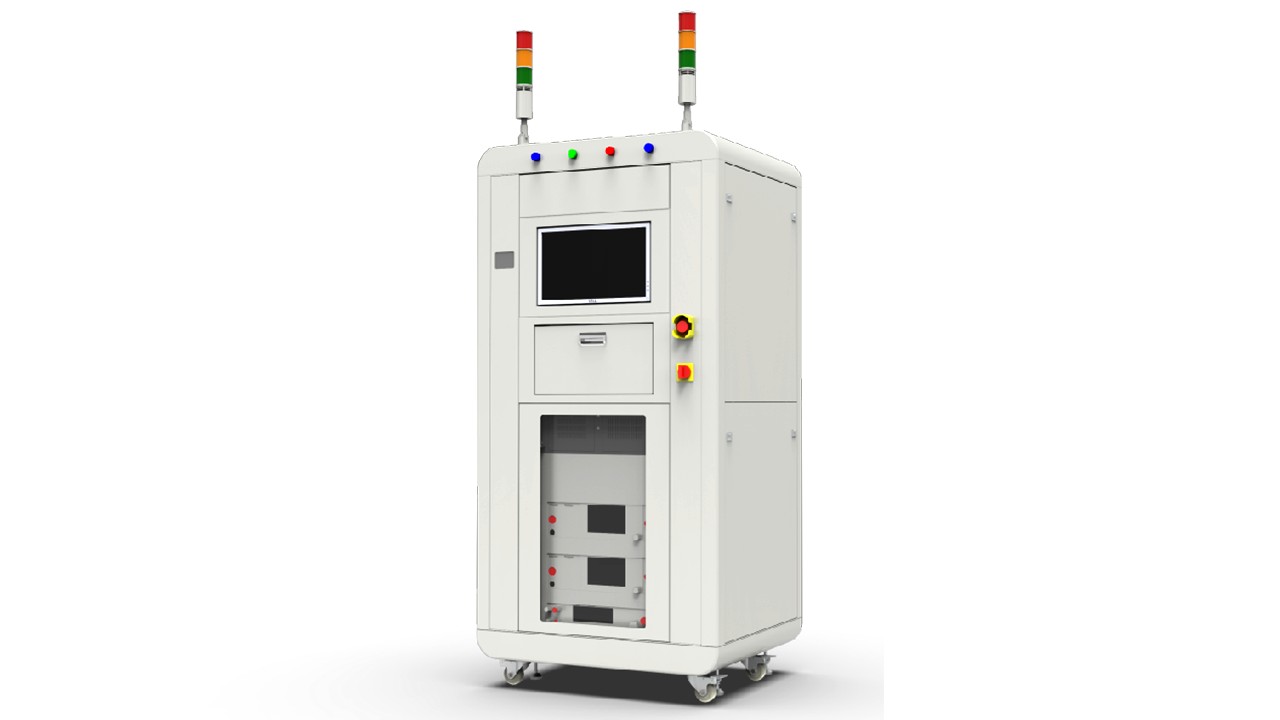

PACK-EOL Testing machine
Features
- The Pack EOL test system is ideal for high-power lithium-ion battery tests.Test and verify possible failures and safety issues during the entire battery pack assembly process.

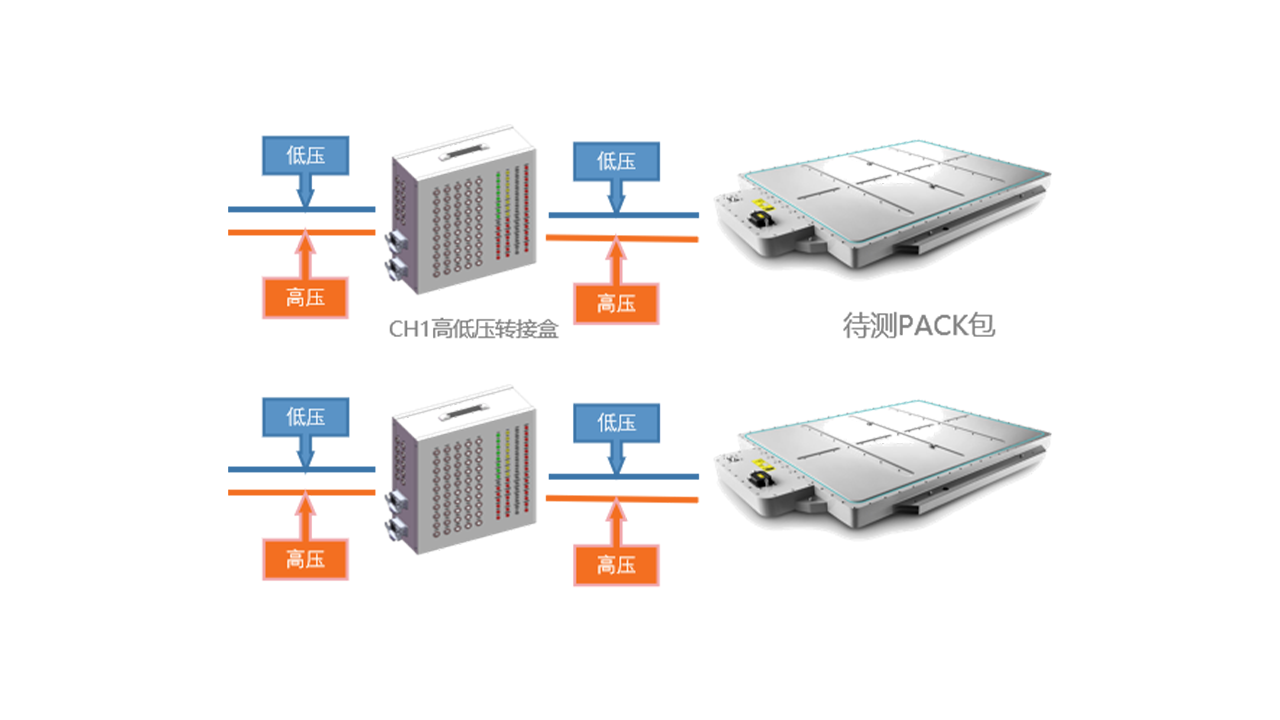

- Complete PACK packet detection through dual-channel high and low voltage conversion.
Test items
- PACK voltage (test the voltage of each point of PACK).
- Cell voltage difference (compare CAN read voltage difference).
- total voltage detection.
- Box heating internal resistance detection (measure the resistance of the heating resistance).
- Heat dissipation Draught Fan detection (close the fan control relay, detect the voltage signal).
- Insulation detection (insulation between positive, negative,shells).
- Withstand voltage detection (withstand voltage between positive, negative, and shells).
- Equipotential testing.
- Communication detection (can communication detection such as Acan, Ccan, etc.).
- Temperature detection (temperature value and number of temperature sensors in BMS, etc.).
- AC internal resistance (test PACK AC internal resistance).
- PWM signal.
PARAMETER FORM
Basic parameters
Parameter value
Equipment size
0.96*0.8*1.95m
Device Channel
2
operating mode
Simultaneous dual channel
