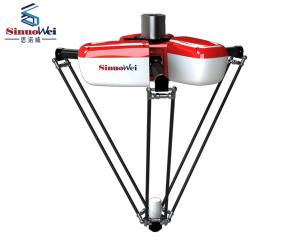

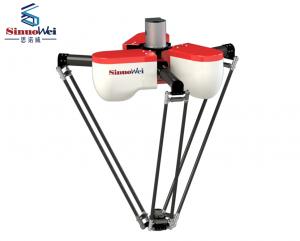

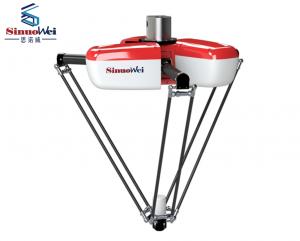

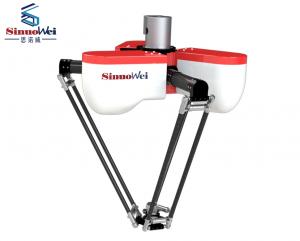

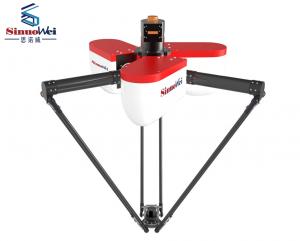

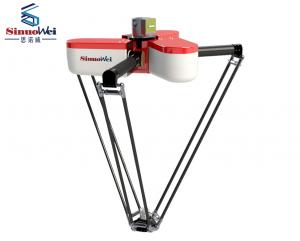

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S2PM-1400-P3 Axes 3+1 Payload 3kg Manipulator Weight 79.5kg Diameter 1400mm Repeatability Position 0.05mm Rotation 0.05° Maximum exercise frequency 450pp/min Rotation range ±360° Allowable maximum moment of inertia 31×10-4kg·m2 Angle range of actuated arm Up 22° Down 76° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S2PM-1600-P3 Axes 3+1 Payload 3kg Manipulator Weight 79.7kg Diameter 1600mm Repeatability Position 0.05mm Rotation 0.05° Maximum exercise frequency 450pp/min Rotation range ±360° Allowable maximum moment of inertia 31×10-4kg·m2 Angle range of actuated arm Up 22° Down 76° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of heavy materials. Parameter Form: Type S2PM-1100-P15 Axes 3+1 Payload 15kg Manipulator Weight 113kg Diameter 1100mm Repeatability Position 0.05mm Rotation 0.025° Maximum exercise frequency 450pp/min Rotation range ±360° Allowable maximum moment of inertia 0.224kg·m2 Angle range of actuated arm Up 23.5° Down 70° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.2kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of heavy materials. Parameter Form: Type S2PM-1400-P15 Axes 3+1 Payload 15kg Manipulator Weight 125kg Diameter 1400mm Repeatability Position 0.05mm Rotation 0.025° Maximum exercise frequency 400pp/min Rotation range ±360° Allowable maximum moment of inertia 0.224kg·m2 Angle range of actuated arm Up 29.9° Down 63.6° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.2kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of heavy materials. Parameter Form: Type S2PM-1600-P15 Axes 3+1 Payload 15kg Manipulator Weight 131kg Diameter 1600mm Repeatability Position 0.05mm Rotation 0.025° Maximum exercise frequency 300pp/min Rotation range ±360° Allowable maximum moment of inertia 0.224kg·m2 Angle range of actuated arm Up 23° Down 71.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.2kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of heavy materials. Parameter Form: Type S2PM-1800-P15 Axes 3+1 Payload 15kg Manipulator Weight 134kg Diameter 1800mm Repeatability Position 0.05mm Rotation 0.025° Maximum exercise frequency 300pp/min Rotation range ±360° Allowable maximum moment of inertia 0.224kg·m2 Angle range of actuated arm Up 23° Down 71.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.2kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55
