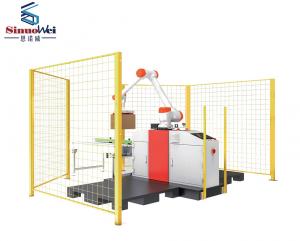

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-20-G Payload 20kg Working space radius 1600mm Palletizing height Fixed type H=1700mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3KW Power supply 1PH 220v/50Hz Weight ≈370Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-20-S Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2200mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: SNW-SG01 Security Fence Parameters Installation space (L×W×H) 3940×3085×2000mm(length can be adjusted according to the actual scene) External dimensions of the fence (L×W×H) 3840×2985×2000mm (length can be adjusted according to the actual scene) Gratings 2 groups Grating detection height 145-1370mm Grating detection length 2000mm Grating transmitter installation position Collaborative base Grating receiver installation position Fence post Communication IO(NPN) Temperature 0-50℃ Max power 6-16W Working power DC 24V±10% Post color RAL1023 Stencil color RAL9017 Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Parameters Installation space (L×W×H) 3940×3085×2000mm(length can be adjusted according to the actual scene) External dimensions of the fence (L×W×H) 3840×2985×2000mm (length can be adjusted according to the actual scene) Gratings 2 groups Grating detection height 145-1370mm Grating detection length 2000mm Grating transmitter installation position Collaborative base Grating receiver installation position Fence post Communication IO(NPN) Temperature 0-50℃ Max power 6-16W Working power DC 24V±10% Post color RAL1023 Stencil color RAL9017 Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2200mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 20kg Working space radius 1600mm Palletizing height Fixed type H=1700mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3KW Power supply 1PH 220v/50Hz Weight ≈370Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:
