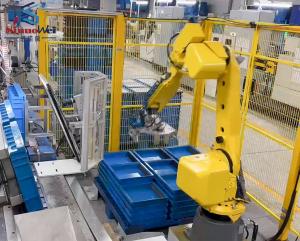

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-30-S Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2100mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-30-H Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2300mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈390Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2100mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2300mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈390Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:
