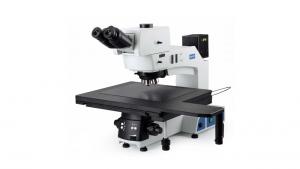

Product Introduction: The objective lens and aperture diaphragm feature motorized switching for more convenient and efficient operation. It is equipped with a 12-inch ultra-large moving stage, providing an ideal environment for semiconductor and FPD (Flat Panel Display) inspection. The system covers a wide range of observation methods including brightfield, darkfield, polarized light, and DIC (Differential Interference Contrast), offering you the most suitable solution for your specific needs. Parameter Form: Parameters Optical System Infinity color-corrected optical system Observation Tube Brightfield / Darkfield / Polarization / DIC Observation Tube Infinity hinge trinocular tube, 0-35° Inclination adjustable, erect image Interpupillary distance: 50-76mm Beam splitting ratio: 100:0 or 0:100 Eyepiece High-point eyepoint widefield plan eyepiece PL10X/25mm, diopter adjustable, optional single scale cross reticle Objective Lens Infinity brightfield/darkfield semi-apochromatic metallurgical DIC objectives (5X, 10X, 20X, 50X, 100X) Infinity long working distance (LWD) brightfield/darkfield semi-apochromatic metallurgical DIC objective 20X Infinity long working distance (LWD) brightfield/darkfield semi-apochromatic metallurgical objectives (50X, 100X) Nosepiece 6-Position motorized brightfield/darkfield nosepiece with DIC slot Stand Group Reflective stand: inclined ergonomic coaxial coarse/fine focusing knobs Coarse stroke: 35mm, Fine focus increment: 0.001mm Equipped with anti-slip tension adjustment and parallax stop mechanism. Built-in 100-240V wide voltage system Transmitted/Reflective stand: inclined ergonomic coaxial coarse/fine focusing knobs Coarse stroke: 35mm, Fine focus increment: 0.001mm Equipped with anti-slip tension adjustment and parallax stop mechanism. Built-in 100-240V wide voltage system Stage Manual stage: right-hand 14×12 inch three-layer mechanical stage with low-profile coaxial X/Y controls Platform dimensions: 710mm×420mm Travel range: 356mm×305mm Equipped with clutch handle for rapid movement; Reflective stand includes metal platform, Transmitted/Reflective stand includes glass platform Motorized stage:  Dimensions: 495mm×641mm, Travel range: 306mm×306mm; Software-controlled X/Y movement, Repeatability accuracy: (3+L/50)μm Equipped with flat platform Illumination System Brightfield/Darkfield reflective illuminator with motorized variable aperture diaphragm and field diaphragm (both centerable) Equipped with brightfield/darkfield illumination switching mechanism Includes filter slides and polarization slots Imaging System 0.35X/0.5X/0.65X/1X C-Mount camera adapters, focus adjustable Others Polarizer slider, fixed analyzer slider, interference filter set for reflection; High-Precision micrometer DIC components Machine Show:

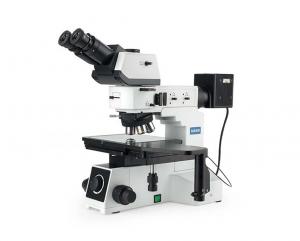

Product Introduction: Featuring a new operating system mechanism with an ergonomic design to minimize operator fatigue. The modular component design allows for free combination of system functions, meeting the demanding requirements of industrial inspection and metallurgical analysis.  Parameter Form: Parameters Optical System Infinity color-corrected optical system Observation Tube 30° inclined, erect image, infinity trinocular tube Interpupillary distance: 50-76mm Light splitting ratio: 100:0 or 0:100 (Supports 25/26.5mm FOV) 30° inclined, inverted image, infinity trinocular tube Interpupillary distance: 50-76mm Light splitting ratio: 0:100; 20:80; 100:0 (Supports 25/26.5mm FOV) 5-35° adjustable inclination, erect image, infinity trinocular tube Interpupillary distance: 50-76mm Diopter adjustment: ±5 dpt (Single side) Light splitting ratio: 100:0 or 0:100 (Supports 22/23/16mm FOV) Eyepiece High-point, wide-field plan eyepiece PL10X/22mm Micrometer compatible, Diopter adjustable (optional) High-point, wide-field plan eyepiece PL10X/23mm Diopter adjustable High-point, wide-field plan eyepiece PL10X/25mm Diopter adjustable, reticle compatible (graduated crosshair) High-point, wide-field plan eyepiece PL10X/26.5mm Diopter adjustable, reticle compatible (graduated crosshair) High-point, wide-field plan eyepiece PL15X/16mm Objective Lens Long working distance (LWD) plan bright/darkfield achromatic metallurgical objectives Magnification: 5X, 10X, 20X, 50X, 100X Infinity LWD plan bright/darkfield Semi-Apochromatic metallurgical objectives Magnification: 5X, 10X, 20X, 50X, 100X Ultra-Long working distance (ULWD) bright/darkfield semi-apochromatic objective Magnification: 20X Focusing Mechanism Reflected light stand, low-position coaxial coarse/fine focusing Coarse focus stroke: 33mm Fine focus precision: 0.001mm Features: Anti-slip tension adjustment and coarse focus upper limit stop Power: Built-in 100-240V wide voltage system with brightness setting an Stage 6-inch 3-layer mechanical stage Low-position coaxial X/Y adjustment Dimensions: 445mm × 240mm Travel range (reflected): 158mm × 158mm Travel range (Transmitted): 100mm × 100mm Features: Clutch handle for rapid movement; Glass stage plate (Transmitted/Reflected) Illumination System 12V 100W halogen lamp Bright/Darkfield reflected light illuminator Features: Variable aperture diaphragm, field diaphragm (both centerable) Bright/Darkfield switching device Filter slot and Polarizer slot included Photography & Imaging 0.35X / 0.5X / 0.65X / 1X c-mount camera adapters Focus adjustable Others / Accessories Polarizer slider Fixed analyzer slider / 360° Rotatable analyzer slider Interference filter set (reflected) High-precision micrometer DIC (differential Interference contrast) components Machine Show:
