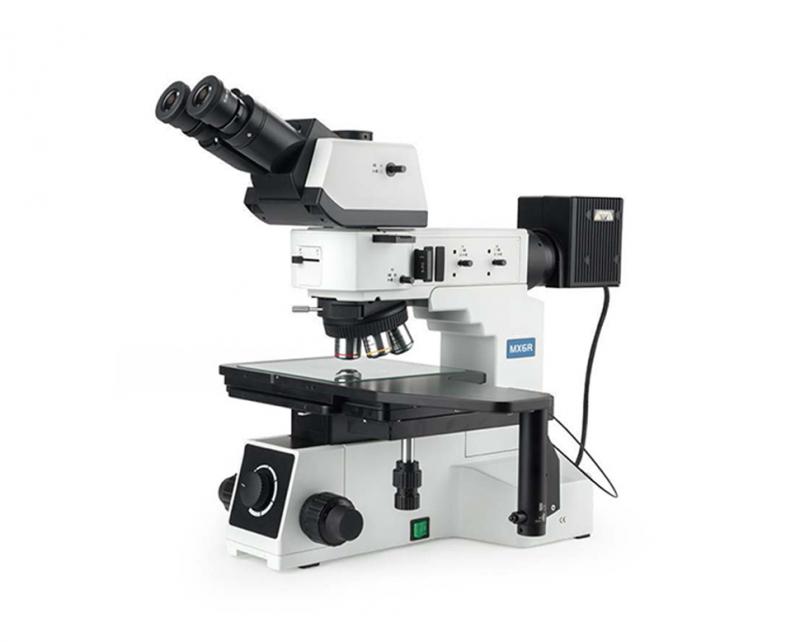

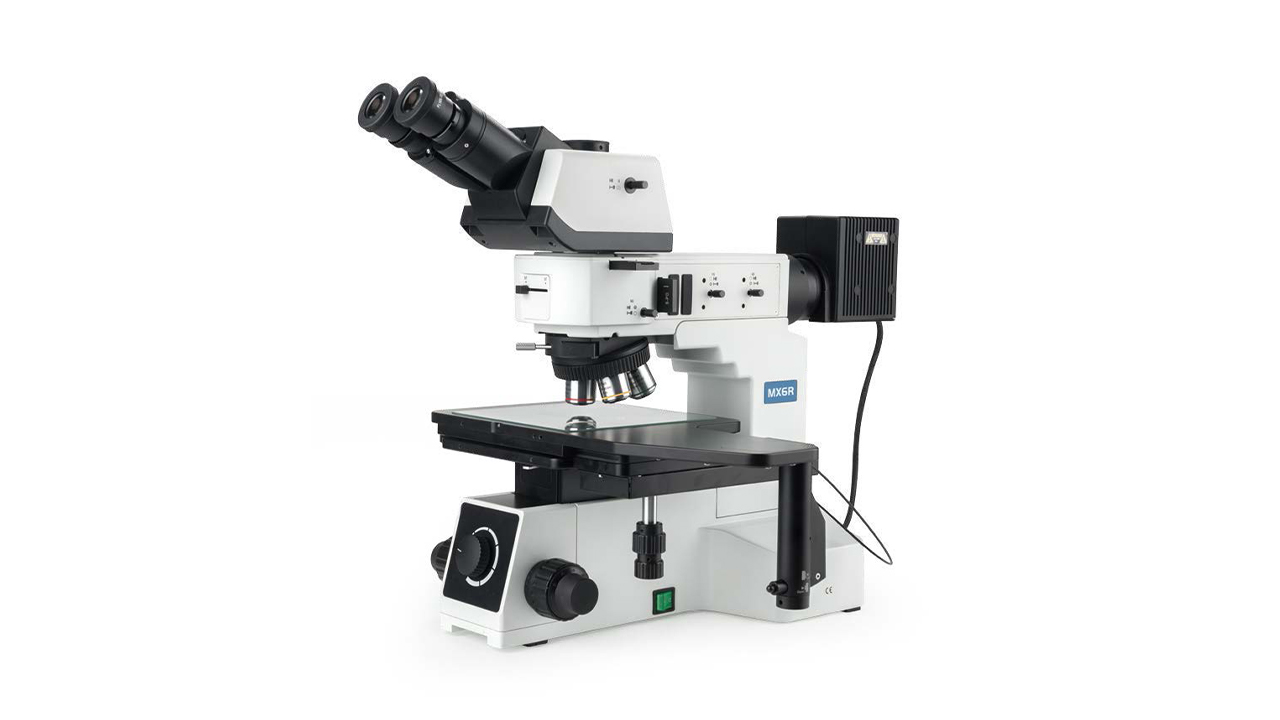

Metallurgical Microscope Mx-6r Upright Metallurgical Microscope

Product Introduction: The objective lens and aperture diaphragm feature motorized switching for more convenient and efficient operation. It is equipped with a 12-inch ultra-large moving stage, providing an ideal environment for semiconductor and FPD (Flat Panel Display) inspection. The system covers a wide range of observation methods including brightfield, darkfield, polarized light, and DIC (Differential Interference Contrast), offering you the most suitable solution for your specific needs. Parameter Form: Parameters Optical System Infinity color-corrected optical system Observation Tube Brightfield / Darkfield / Polarization / DIC Observation Tube Infinity hinge trinocular tube, 0-35° Inclination adjustable, erect image Interpupillary distance: 50-76mm Beam splitting ratio: 100:0 or 0:100 Eyepiece High-point eyepoint widefield plan eyepiece PL10X/25mm, diopter adjustable, optional single scale cross reticle Objective Lens Infinity brightfield/darkfield semi-apochromatic metallurgical DIC objectives (5X, 10X, 20X, 50X, 100X) Infinity long working distance (LWD) brightfield/darkfield semi-apochromatic metallurgical DIC objective 20X Infinity long working distance (LWD) brightfield/darkfield semi-apochromatic metallurgical objectives (50X, 100X) Nosepiece 6-Position motorized brightfield/darkfield nosepiece with DIC slot Stand Group Reflective stand: inclined ergonomic coaxial coarse/fine focusing knobs Coarse stroke: 35mm, Fine focus increment: 0.001mm Equipped with anti-slip tension adjustment and parallax stop mechanism. Built-in 100-240V wide voltage system Transmitted/Reflective stand: inclined ergonomic coaxial coarse/fine focusing knobs Coarse stroke: 35mm, Fine focus increment: 0.001mm Equipped with anti-slip tension adjustment and parallax stop mechanism. Built-in 100-240V wide voltage system Stage Manual stage: right-hand 14×12 inch three-layer mechanical stage with low-profile coaxial X/Y controls Platform dimensions: 710mm×420mm Travel range: 356mm×305mm Equipped with clutch handle for rapid movement; Reflective stand includes metal platform, Transmitted/Reflective stand includes glass platform Motorized stage:  Dimensions: 495mm×641mm, Travel range: 306mm×306mm; Software-controlled X/Y movement, Repeatability accuracy: (3+L/50)μm Equipped with flat platform Illumination System Brightfield/Darkfield reflective illuminator with motorized variable aperture diaphragm and field diaphragm (both centerable) Equipped with brightfield/darkfield illumination switching mechanism Includes filter slides and polarization slots Imaging System 0.35X/0.5X/0.65X/1X C-Mount camera adapters, focus adjustable Others Polarizer slider, fixed analyzer slider, interference filter set for reflection; High-Precision micrometer DIC components Machine Show:
