Automatic Ceramic Capacitor Cutting Machine - Sinuowei
Automatic Ceramic Capacitor Cutting Machine Automatic Ceramic Capacitor Cutting Machine Automatic Ceramic Capacitor Cutting Machine Automatic Ceramic Capacitor Cutting Machine

Automatic Ceramic Capacitor Cutting Machine

Applicable product objects of the equipment:
Cutting of SMD ceramic capacitors, inductors, magnetic beads, resistors and other products.

Inquiry now
Products description

Automatic Ceramic Cutting Machine

Application:

Cutting of SMD ceramic capacitors, inductors, magnetic beads, resistors and other products.
Equipment main overview:

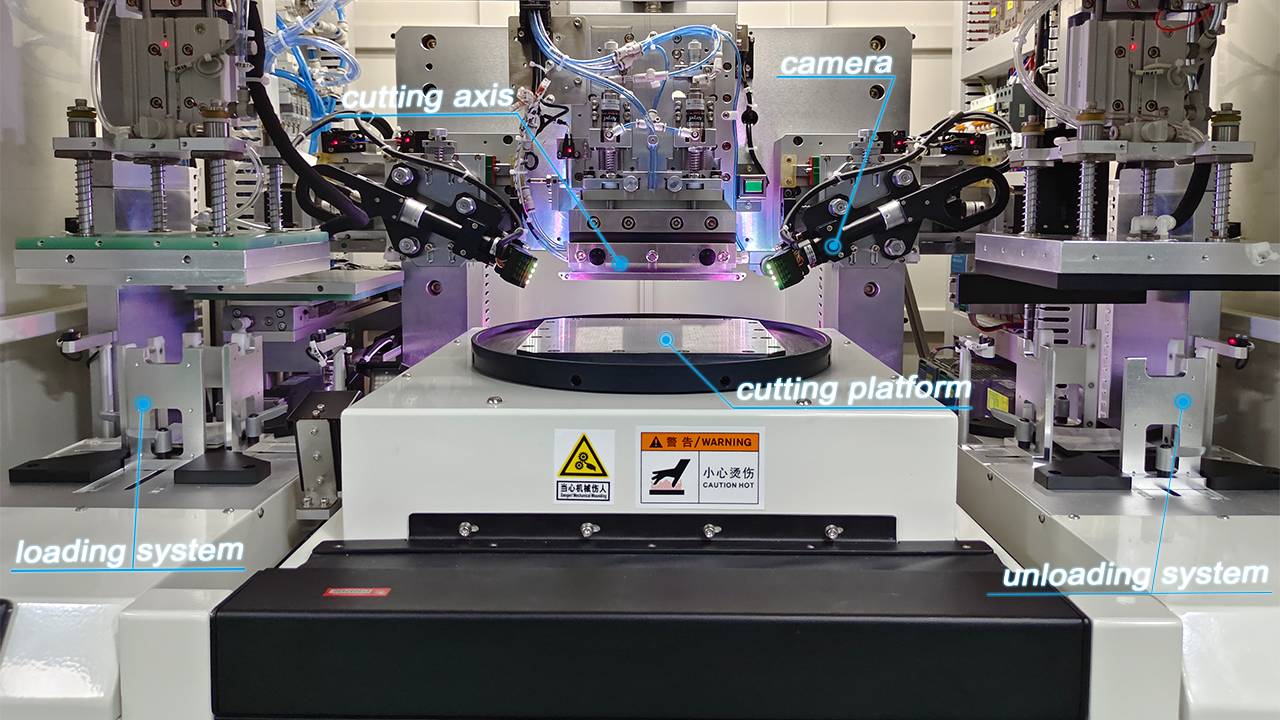

This equipment is specially designed for the cutting operation of chip components, and its biggest features are automation, speed and safety. This equipment uses two sets of CCDs as the visual alignment imaging system, through hardware imaging and processing to judge the center point of MARK, as the basis for cutting. The entire cutting mechanism is composed of the angle adjustment axis, the platform movement axis and the servo system of the cutter axis. The image system is integrated through the PC software, which greatly improves the cutting quality and efficiency.
PARAMETER FORM

Basic parameter

Parameter value

Machine size

1200mm×1100mm×2100mm (including alarm light)

Cutting material size

<170mm×170mm (according to customer demand)

Machine weight

1500KG

Cutting speed

0.5 seconds/knife (alignment)

Alignment speed

0.3 seconds/mark

Power supply

220BAC,single phase，50Hz，6KW

Air pressure

0.4-0.7MPa

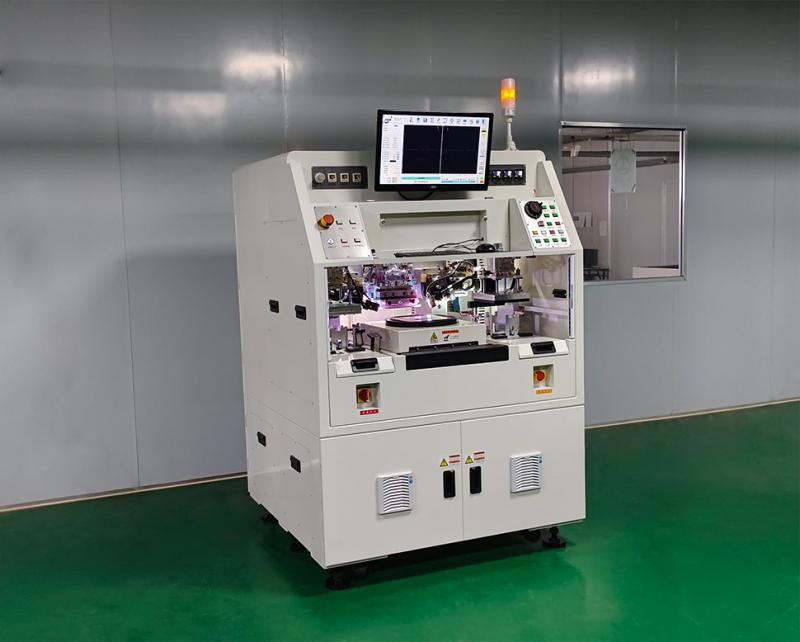

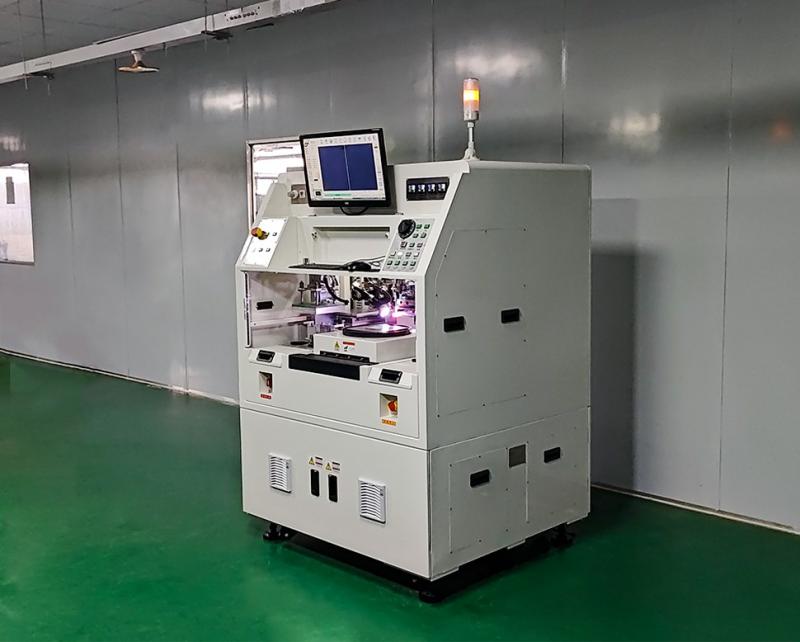

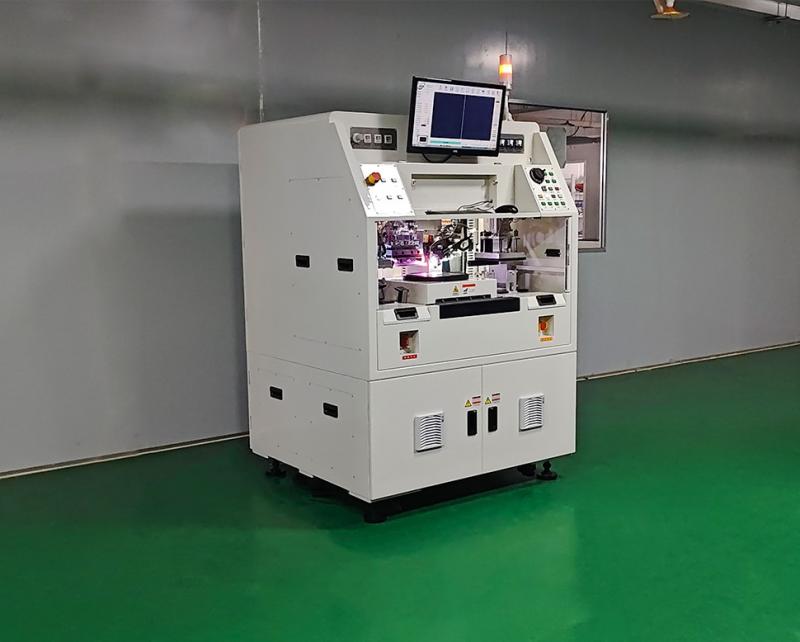

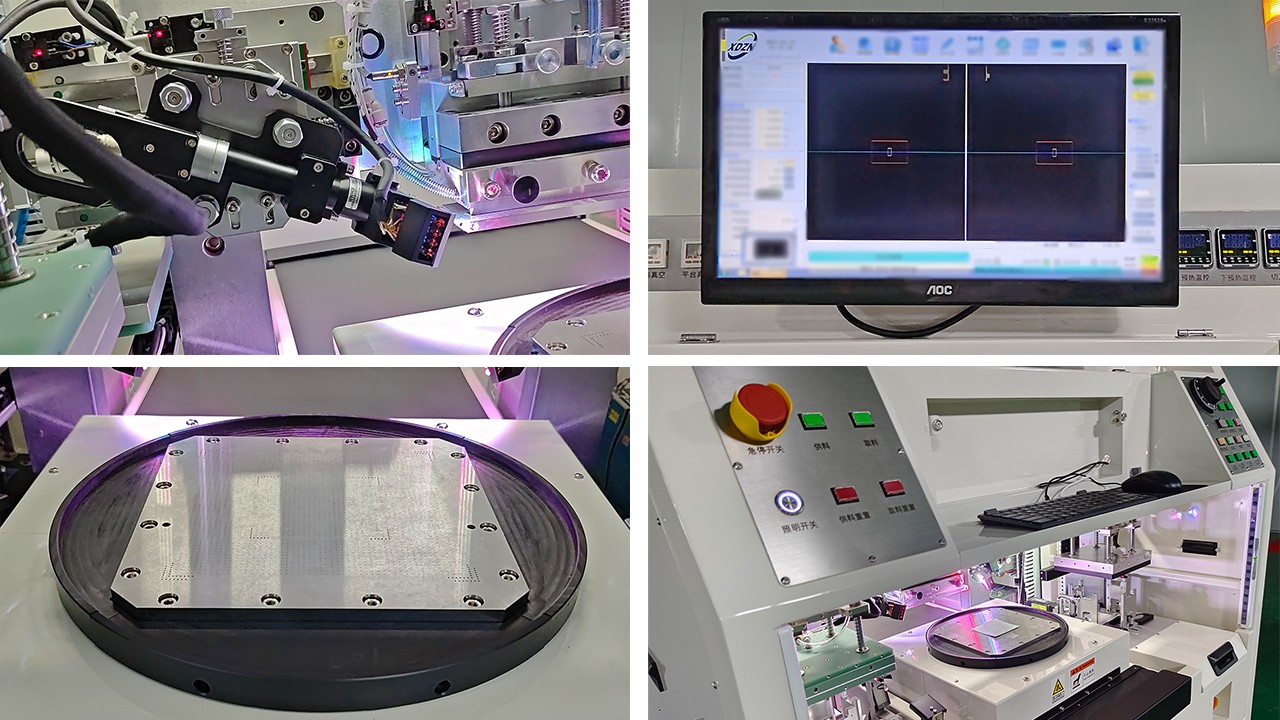

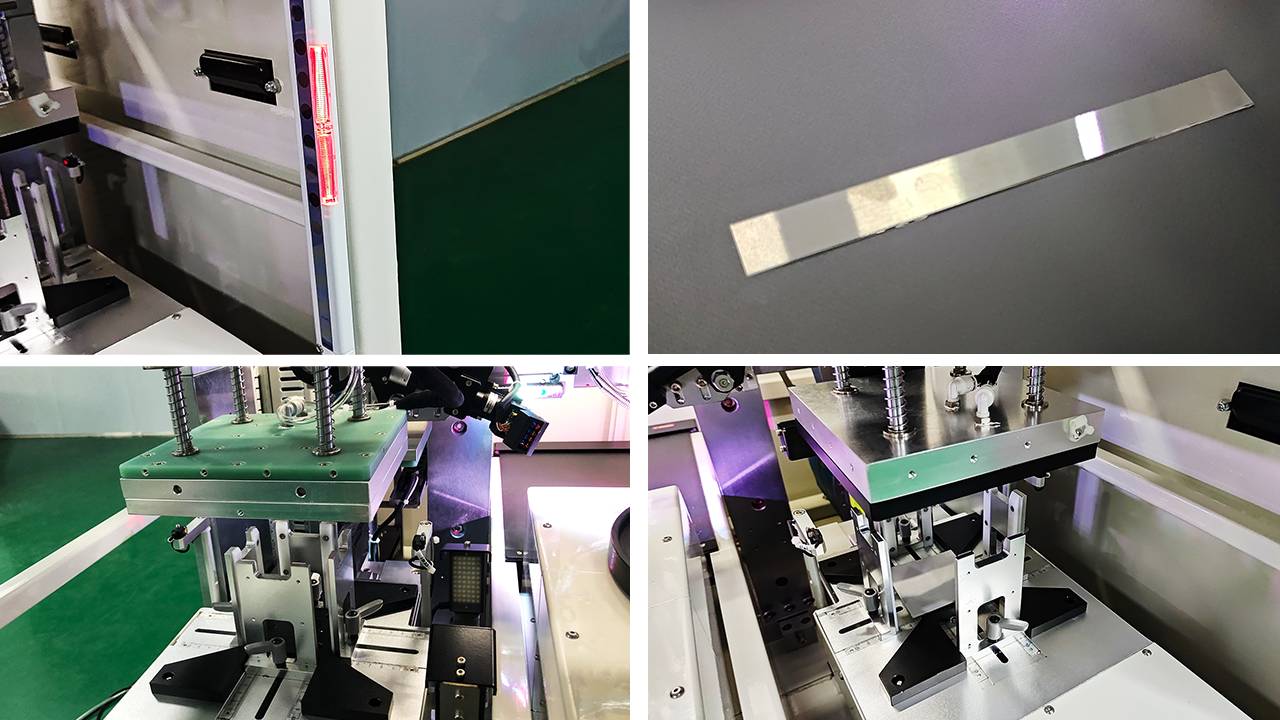

MACHINE SHOW





How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.

CONTACT US

Email:colin@xmsinuowei.com    Tel:+86 18150116901

Whatsapp:+86 18150116901
