MLCC cutting machine Multi-Layer Ceramic Capacitors cutting machine
High precision Ceramic Cutting Machine MLCC/MLCI (Chip Capacitor/Inductor) this device is made for the continuous miniaturization of ceramic components in recent years, with high cost performance.
MLCC (Multi-Layer Ceramic Capacitors) Cutting Machine

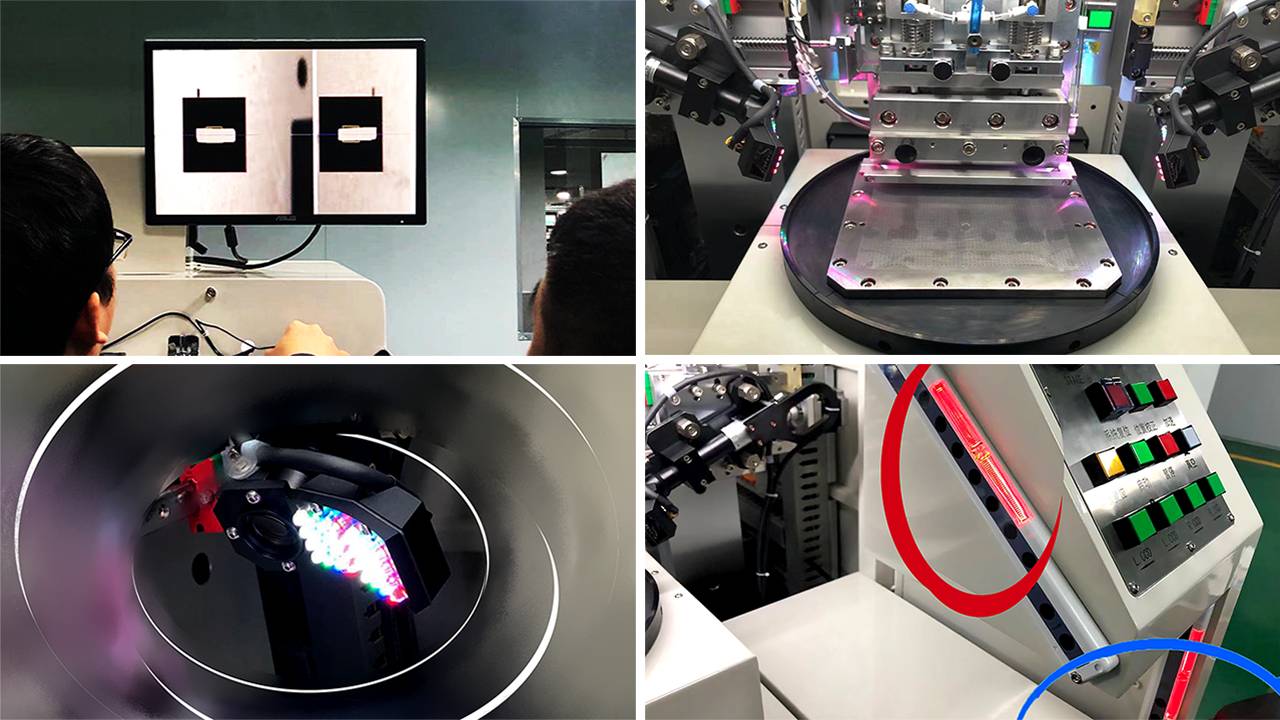

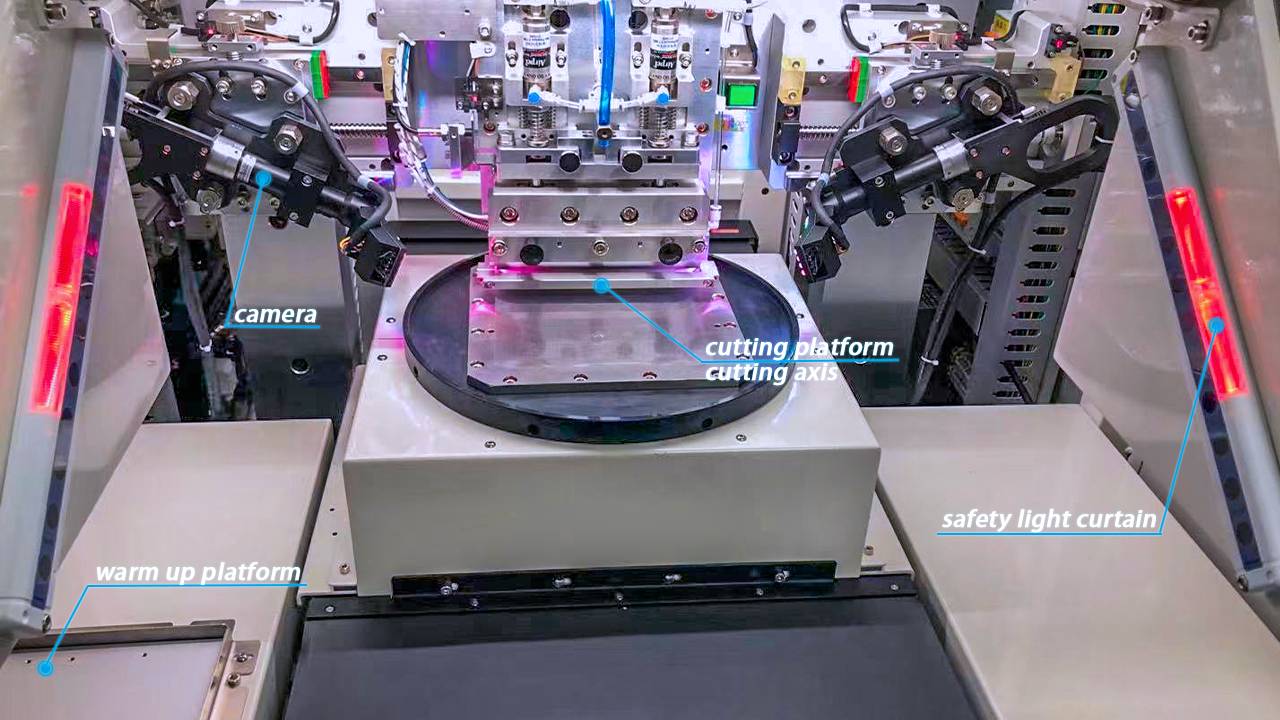

This equipment is specially designed for the cutting operation of chip components. This equipment adopts two sets of CCDs as the visual alignment imaging system, through hardware imaging and processing to judge the center point of MARK as the basis for cutting. The entire cutting mechanism is composed of the angle adjustment axis, the platform movement axis and the servo system of the cutter axis. The image system is integrated through the PC software, which greatly improves the cutting quality and efficiency, and includes the blade damage visual detection function. Product pre-positioning function before loading, and double preheating function selection before loading.
Applicable product objects of the equipment:
cutting of SMD ceramic capacitors, inductors, MLCC,magnetic beads, resistors and other products.
PARAMETER FORM
product name
MLCC（Multi-Layer Ceramic Capacitors) cutting machine
model
CTL-501
size
1000mm (length) *1000mm (width) *1650mm (height)
weight
1100kg
blade size
140mm(length)*22.4mm(width)*0.1(thickness)
blade temperature
70°c
strength
Single-phase power supply 220v+-10%, 50Hz
pressure
0.5Mpa-0.0.65Mpa
cutting speed
8knife/s(max)
cutting thickness
5mm(max)
vacuum
90
rated current
28A
warranty period
One year
Extra service
Professional technical training
Major component brands
Japan SMC, Germany SIEMENS, Japan Panasonic, Japan Keyence, France Schneider, Germany BASLER, Taiwan HIWIN.
MACHINE VIDEO
How to order an automatic machine for your product?
Share us the picture in different angles of your product.
Share us the drawing of your product.
CONTACT US
Email:colin@xmsinuowei.com Tel:+86 18150116901
Whatsapp:+86 18150116901
