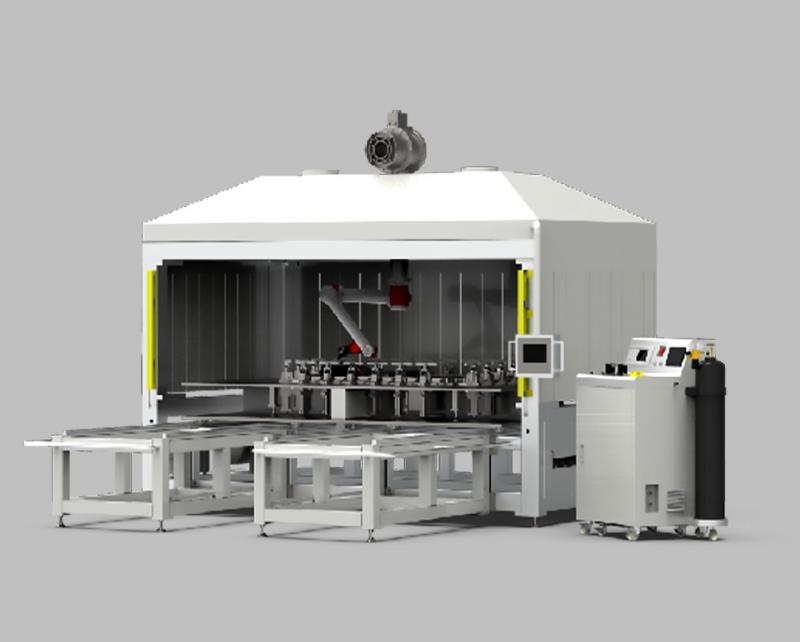

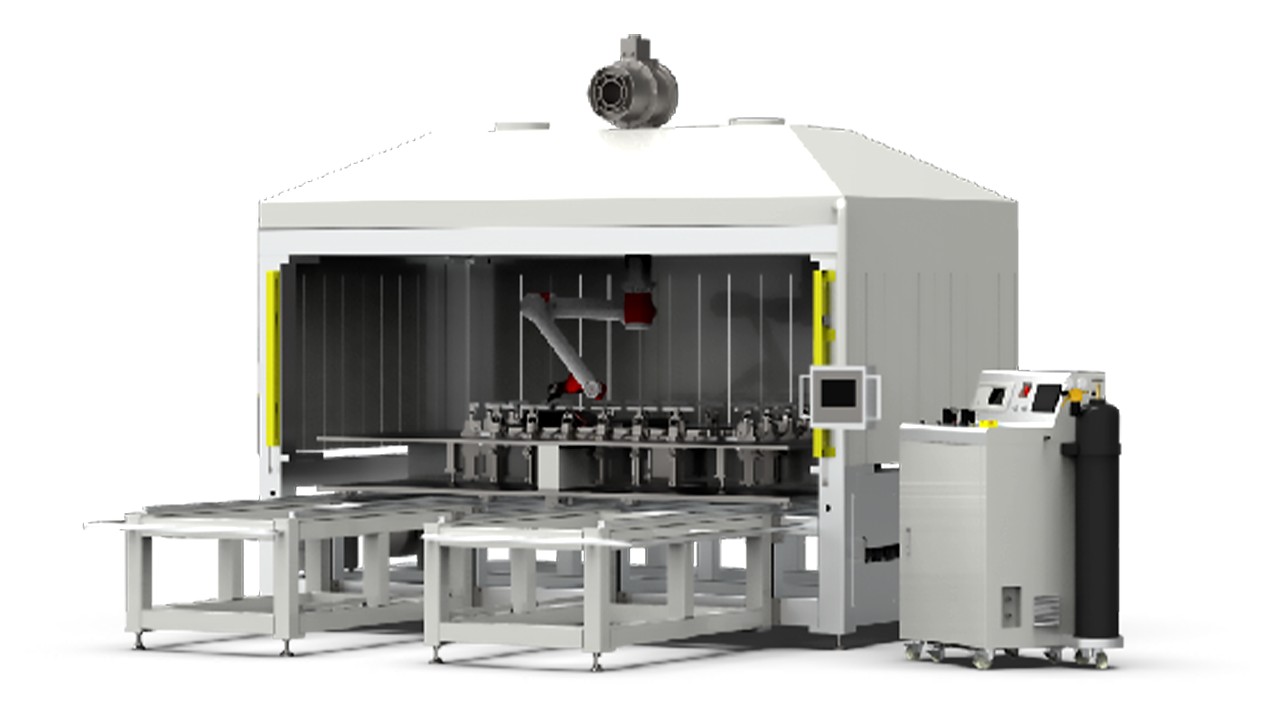

Automatic PACK point positioning station of lower box body
Features
- Maintain the stability of gas composition in the test area.
- Ensure the stability of the testing process.
- The residual hydrogen and nitrogen component after detection are pump out of that detection area.
- The direction of exhaust pipeline of the unit can be planned and configured according to the actual situation of plant LAYOUT.
Standard configuration
- Parts: equipment frame, top flange cover, frame shield, safety light curtain, protective fence, curtain, foot cup, etc.
- Interactive part: 10-inch touch screen, cantilever box.
- Slide table part: slide table base plate, tooling compatible positioning seat, linear guide rail and slider, slide table in and out cylinder, slide table limited positioning mechanism, etc.
- Exhaust unit, hydrogen solubility detector and gas storage tank.
PARAMETER FORM
Basic parameter
Parameter value
Equipment size
1.07*0.70*1.47m
Detection accuracy
5×10-7Pa·m3/s
Response time
0.7S
Leak rate display range
1×10-2 -1×10-7Pa·m3/s
How to order an automatic machine for your product?
Share us the picture in different angles of your product.
Share us the drawing of your product.
