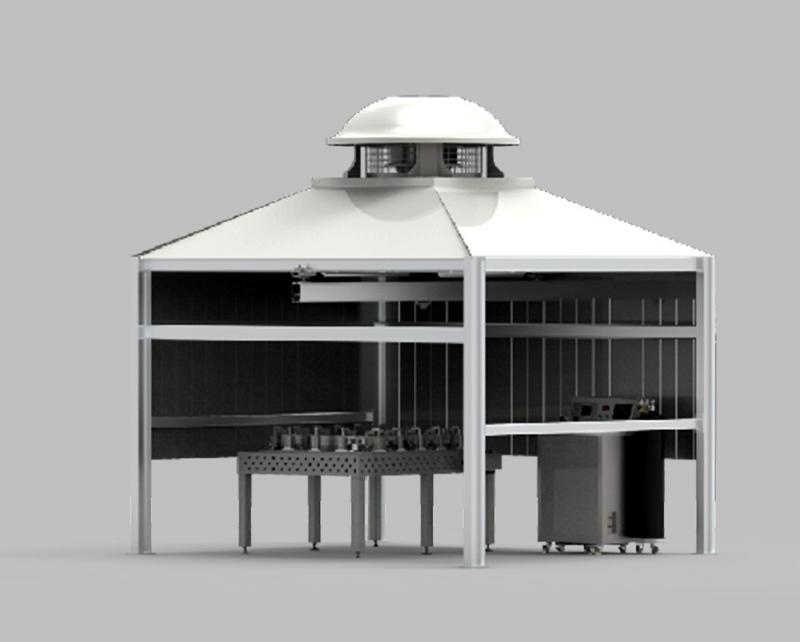

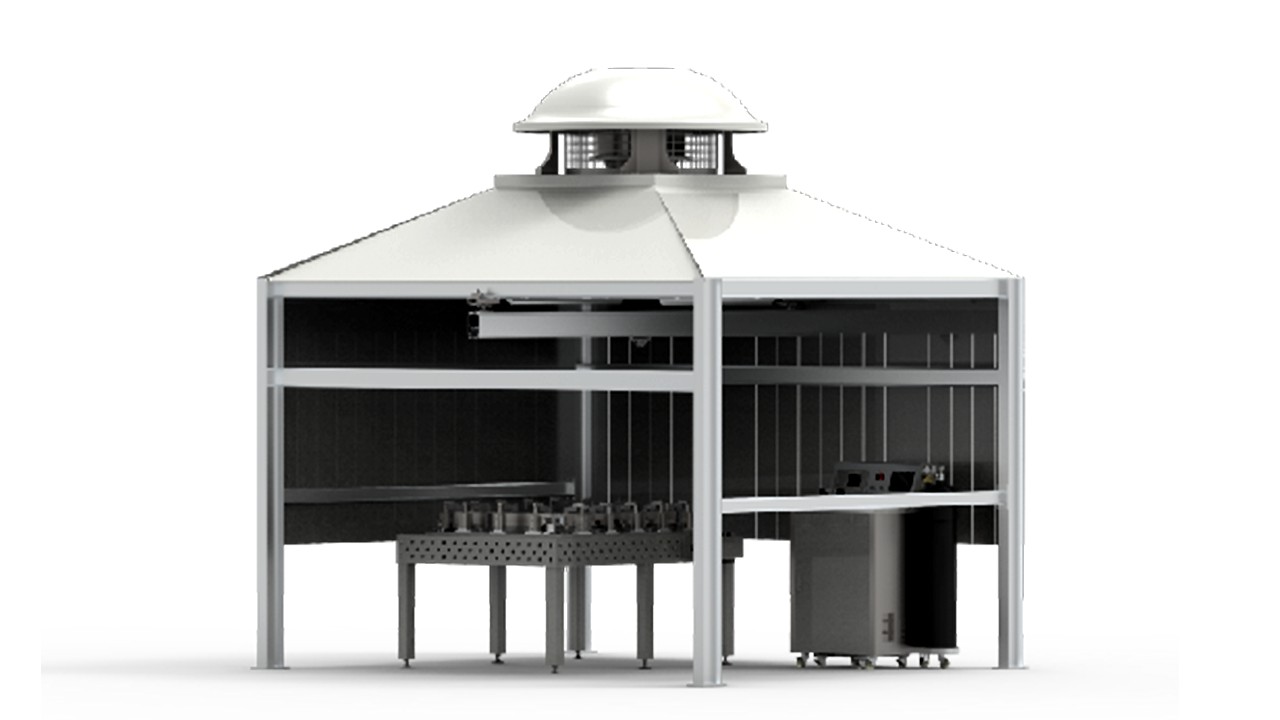

Manual leak point positioning station of lower box body of PACK
Features
- One-key start detection.
- Vacuum pumping (vacuum degree can be set).
- Hydrogen-nitrogen mixture (inflation pressure can be set).
- Configure high-precision pressure sensor to detect large leakage.
- The equipment is movable and easy to install.
- PLC control, sound and light alarm.
- Configure negative pressure output interface+positive pressure (hydrogen and nitrogen) output interface.
- Configuration of exhaust port (docking with the exhaust pipe in the factory).
- Check the ambient hydrogen concentration to ensure the safety of operation.
Standard configuration
- The cells are framed and received, and are transported by robots and fixtures .
- Cell voltage measurement, cell internal resistance measurement, cell thickness measurement, defective cell removal and collection, cell replenishment in the material frame.
PARAMETER FORM
Basic parameter
Parameter value
Equipment size
1.07*0.7*1.47m
Detection accuracy
5×10-7Pa·m3/s
Response time
0.7S
Leak rate display range
1×10-2 -1×10-7Pa·m3/s
How to order an automatic machine for your product?
Share us the picture in different angles of your product.
Share us the drawing of your product.
CONTACT US
Email:colin@xmsinuowei.com Tel:+86 18150116901
Whatsapp:+86 18150116901
