Hydrogen Nitrogen Tightness Testing Machine

Hydrogen nitrogen tightness testing machine Features One-key start detection Vacuum pumping (vacuum degree can be set) Hydrogen-nitrogen mixture (inflation pressure can be set) Configure high-precision pressure sensor to detect large leakage The equipment is movable and easy to install PLC control, sound and light alarm Configure negative pressure output interface+positive pressure (hydrogen and nitrogen) output interface. Configuration of exhaust port (docking with the exhaust pipe in the factory).
Products description

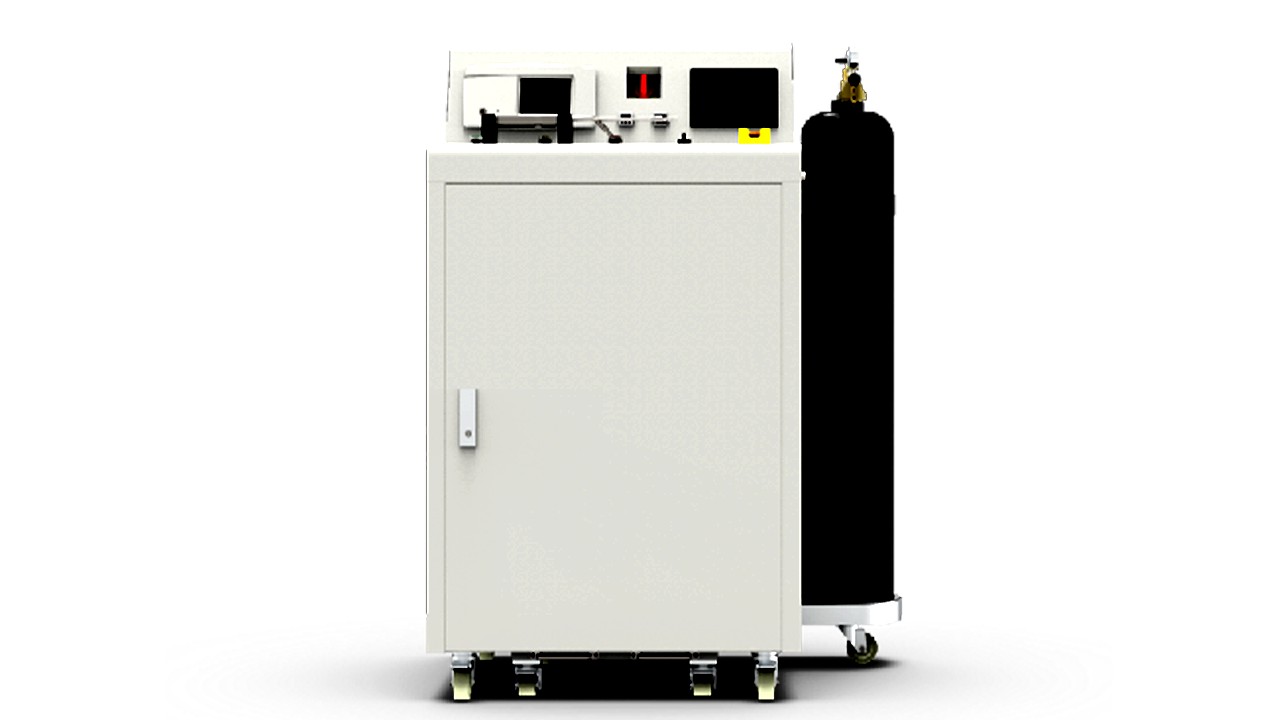

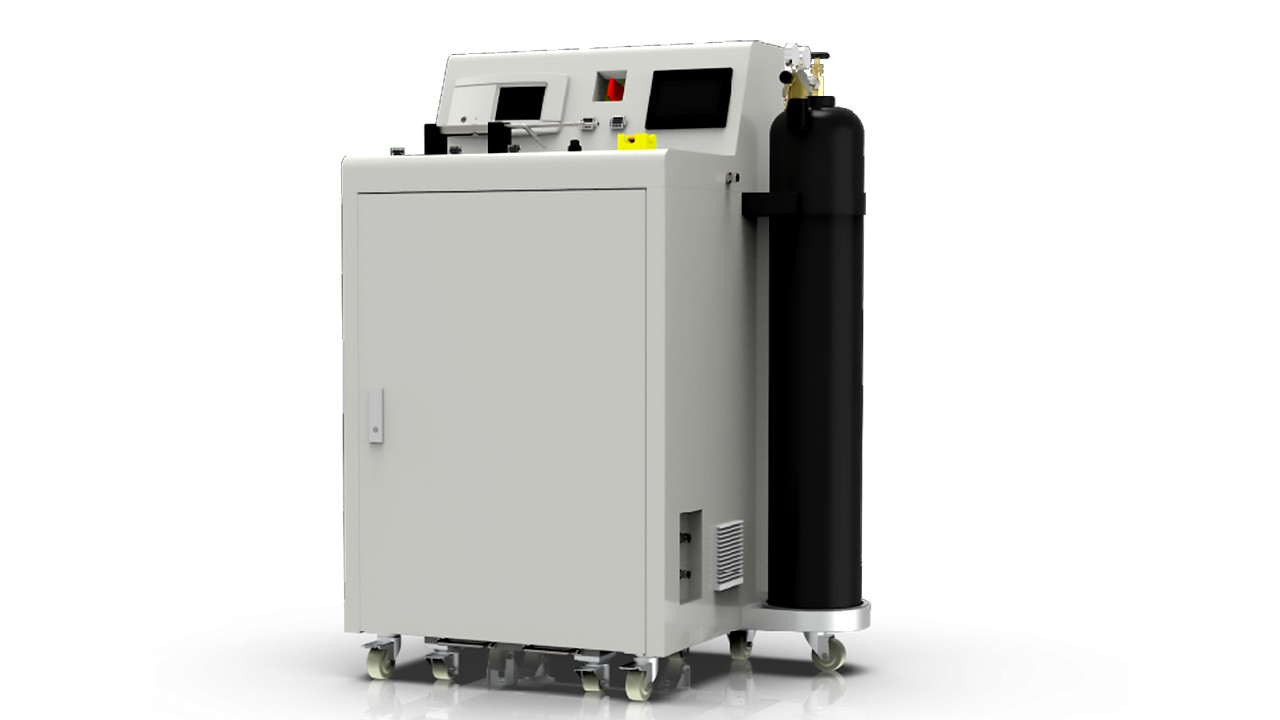

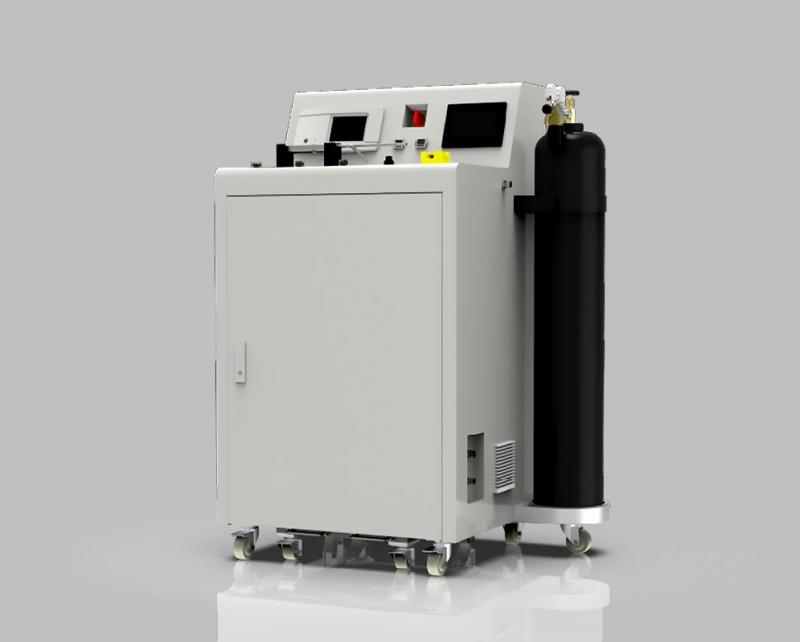

Hydrogen nitrogen tightness testing machine


Features

  • One-key start detection.
  • Vacuum pumping (vacuum degree can be set).
  • Hydrogen-nitrogen mixture (inflation pressure can be set).
  • Configure high-precision pressure sensor to detect large leakage.
  • The equipment is movable and easy to install.
  • PLC control, sound and light alarm.
  • Configure negative pressure output interface+positive pressure (hydrogen and nitrogen). output interface.
  • Configuration of exhaust port (docking with the exhaust pipe in the factory).

Standard configuration

  • Hydrogen leak detector.
  • vacuum pump.
  • PLC control module.
  • High precision pressure sensor.
  • electrical module.
  • Pneumatic module.
  • Box workbench.

PARAMETER FORM

Basic parameter

Parameter value

Equipment size

1.07×0.7×1.47m

Detection accuracy

5×10-7Pa·m3 /s

First boot time

60S

Leak rate display range

1×10-2 -1×10-7Pa·m3/s

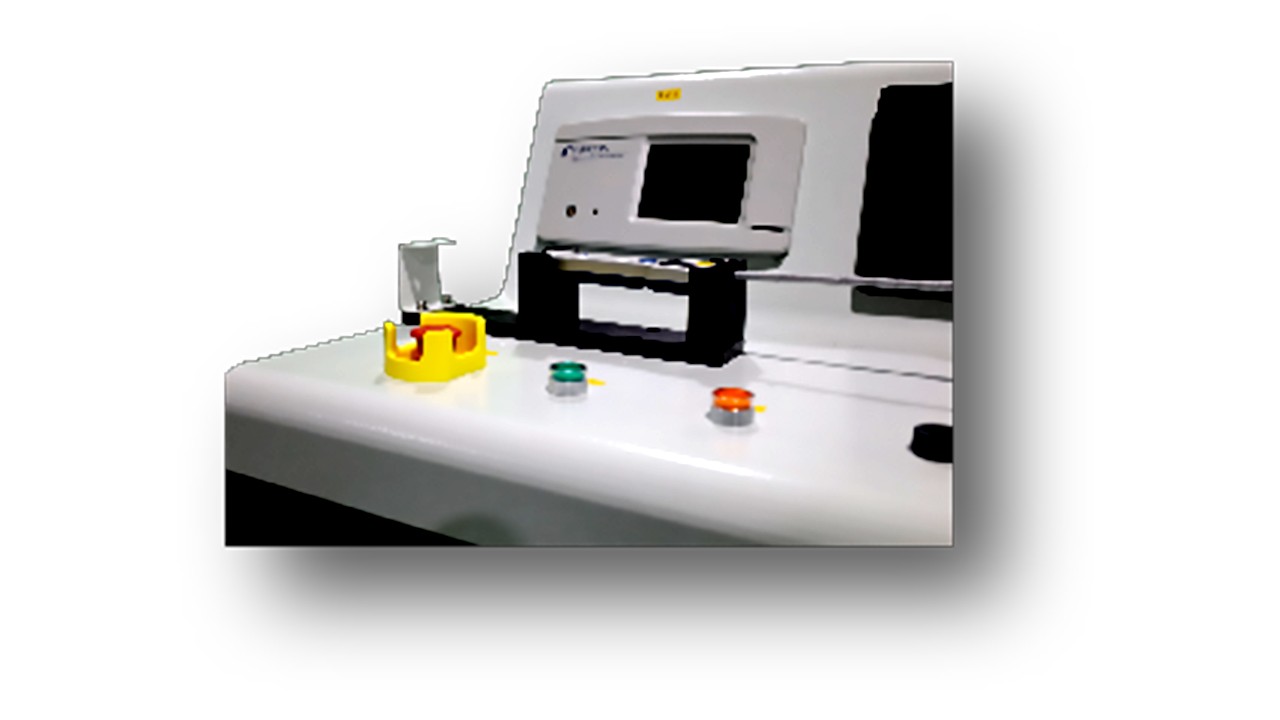

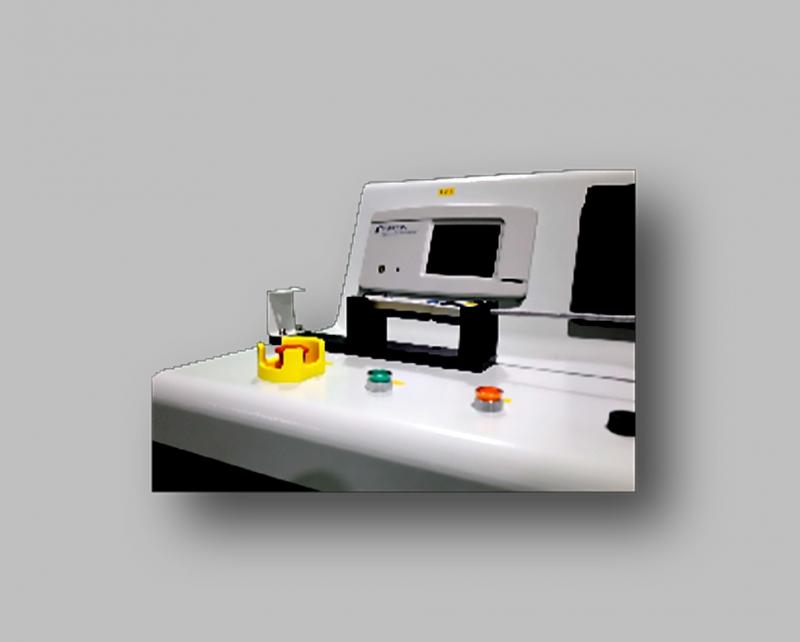

MACHINE SHOW





How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.
