Pressurized Square Mold

Pressurized square mold Features The glue is fast and initialized, and the flatness of the bottom and four corners of the module is controlled.
Products description

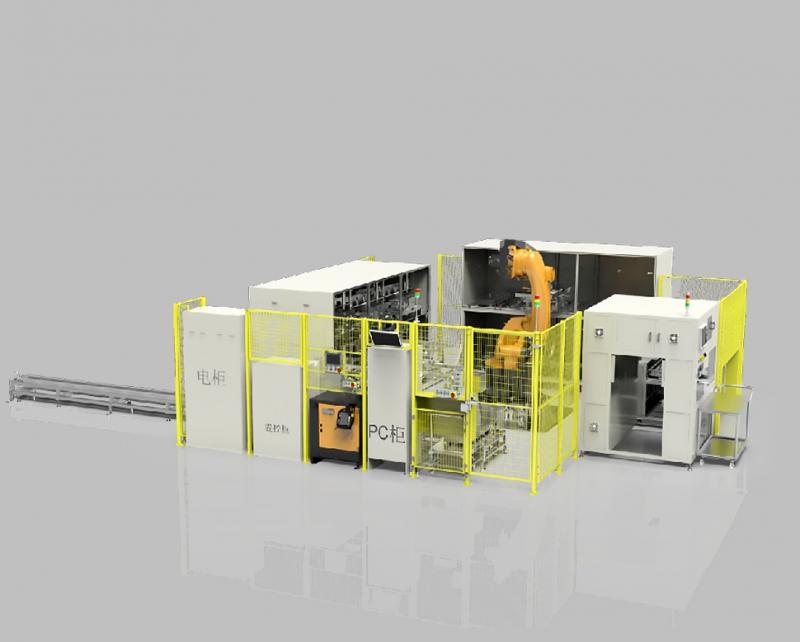

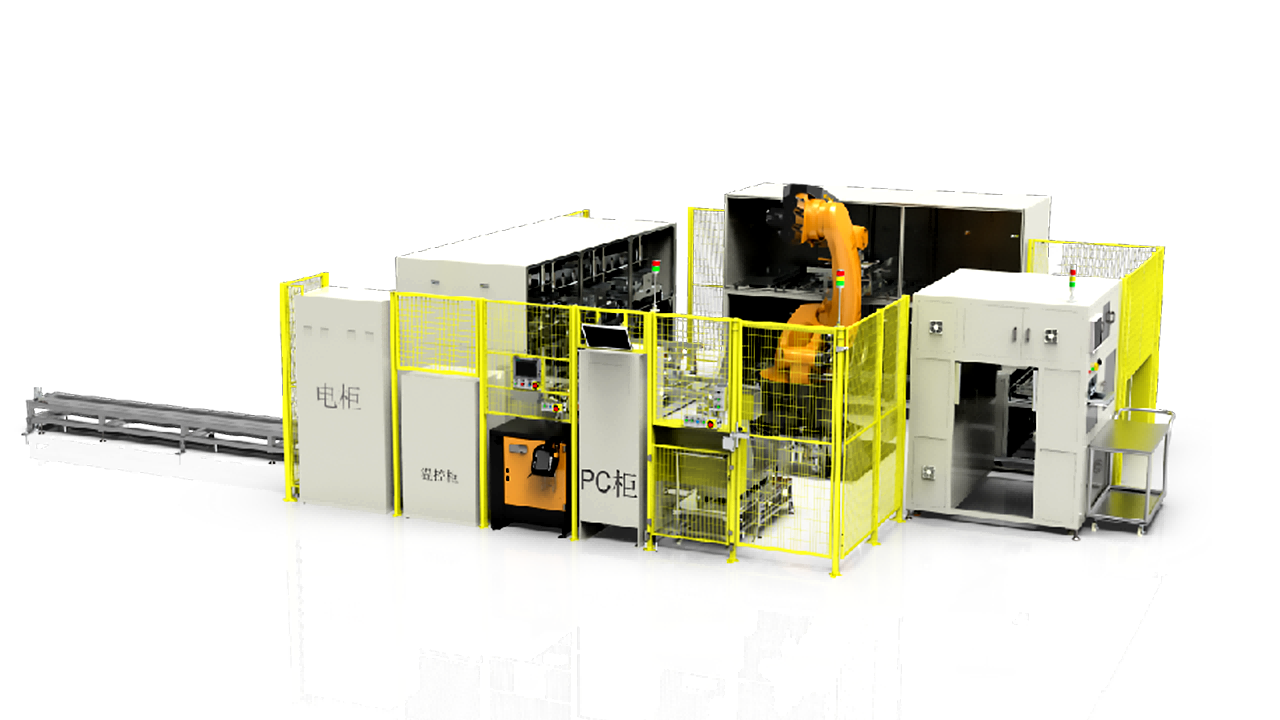

Pressurized square mold


Features

The glue is fast and initialized, and the flatness of the bottom and four corners of the module is controlled.

Standard configuration

Module heating and pressurization.

Module let stand.

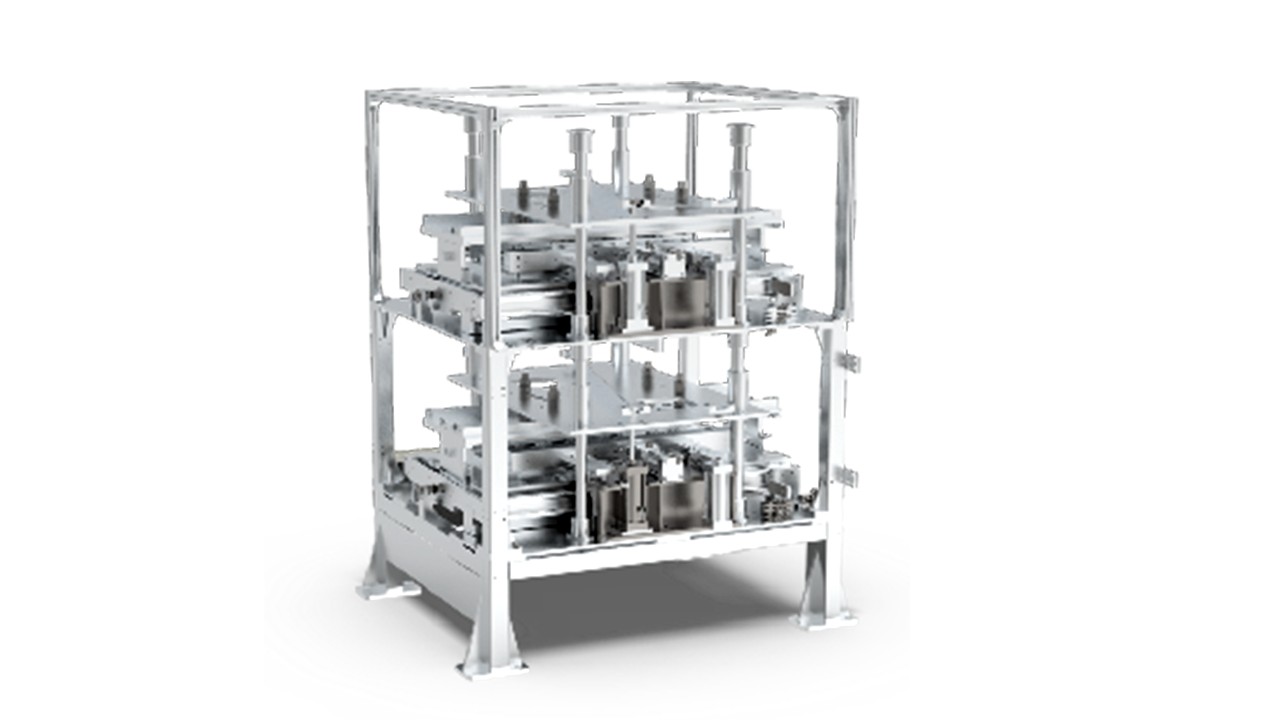

Module heating and pressurization

Technology

Cylinder telescopic adjustment pressure plate, moving up and down, to achieve top compression.
The cylinder is telescopic to adjust the pressure plate, moving left and right to achieve left and right compression.
The pressure plate mounting bracket is fixed on the linear guide slider to ensure the verticality of the pressure plate.

The slide table can be telescopic outward, convenient for the robot to take material.

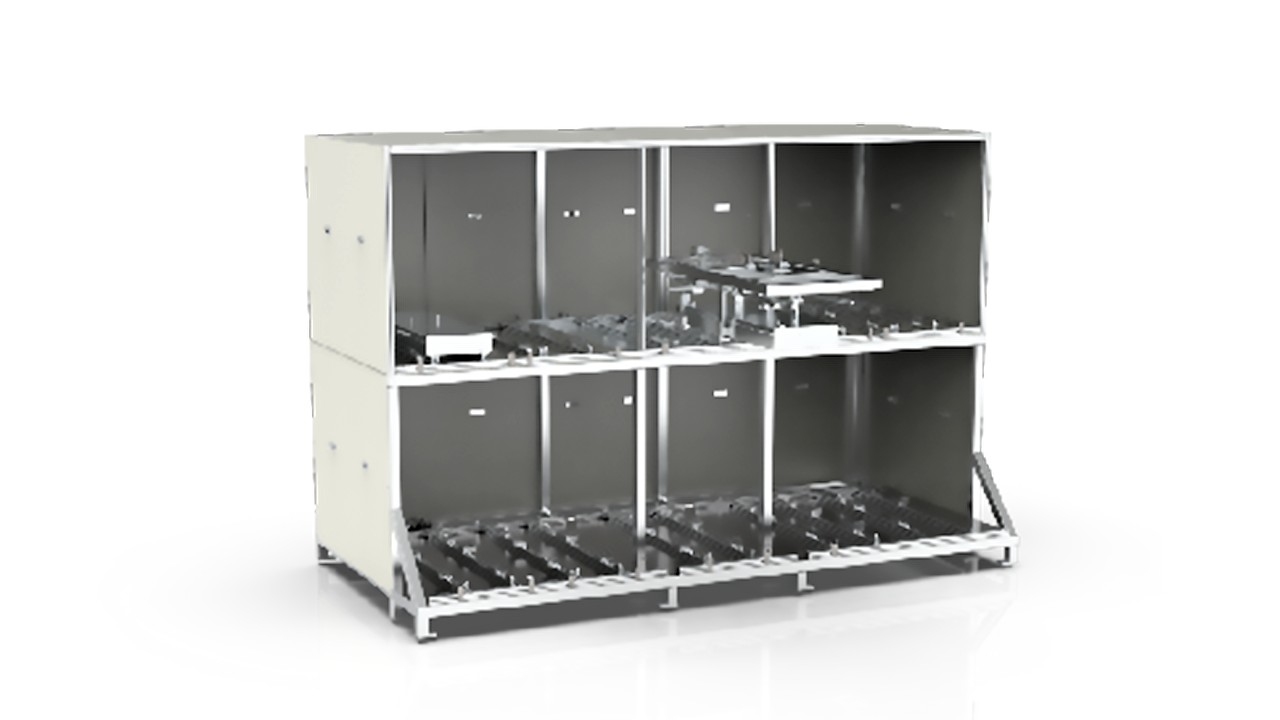

Module let stand

Technology

Proximity switch determines whether the module is in position.
Module positioning support block, which can be compatible with modules of different sizes by adjusting the position of the positioning block.
Flatness adjustment, adjust the flatness of the 4 corners by adjusting the tightening depth of the screw.

How to order an automatic machine for your product?


Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.
