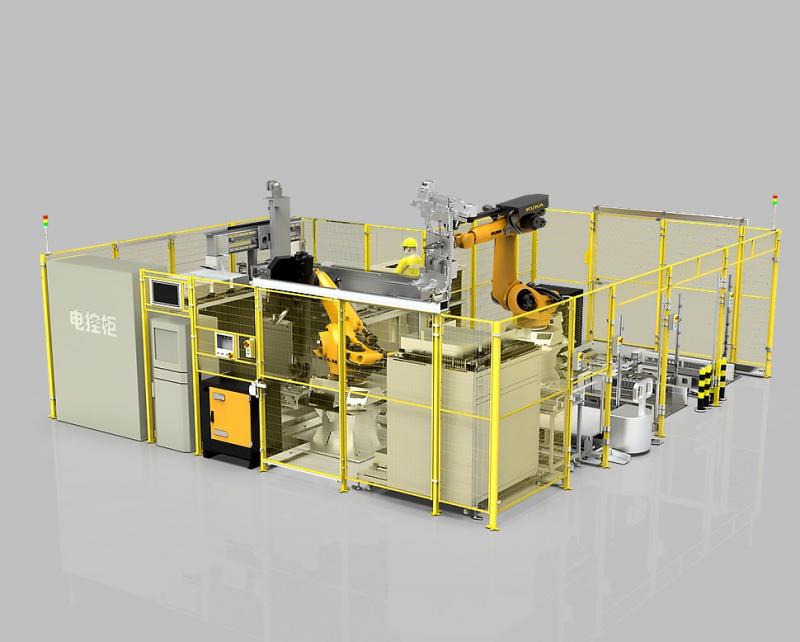

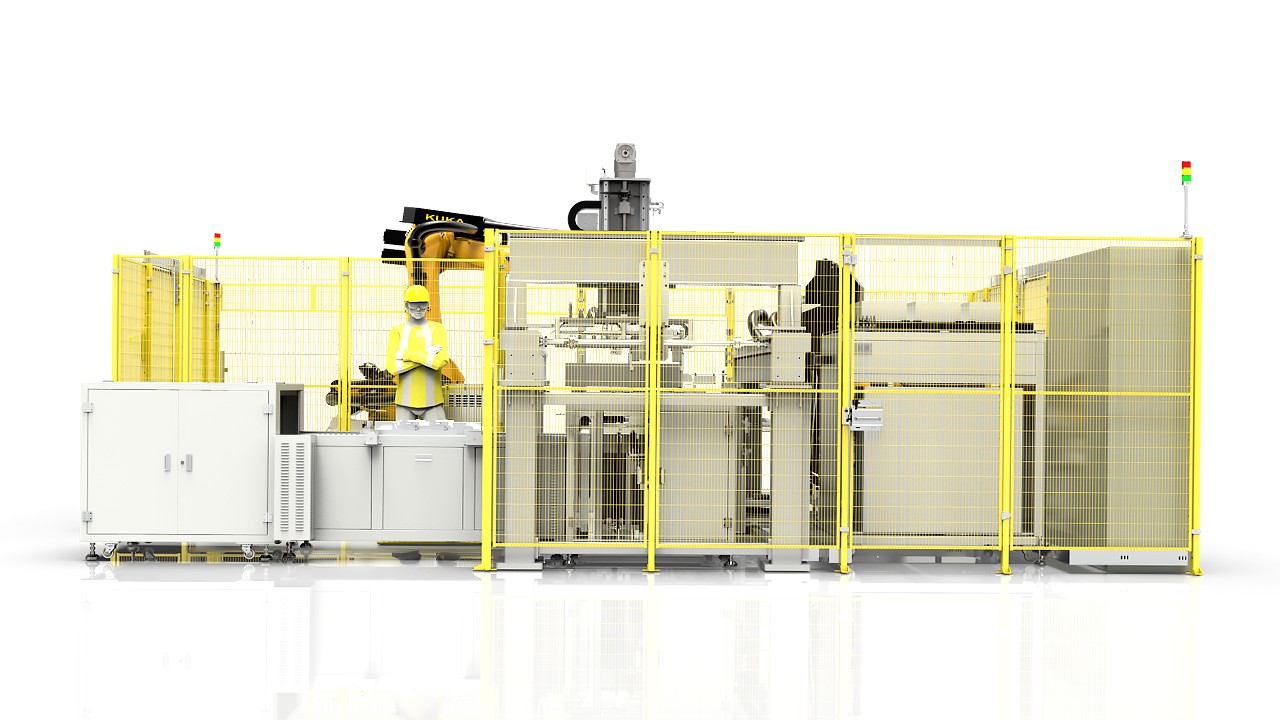

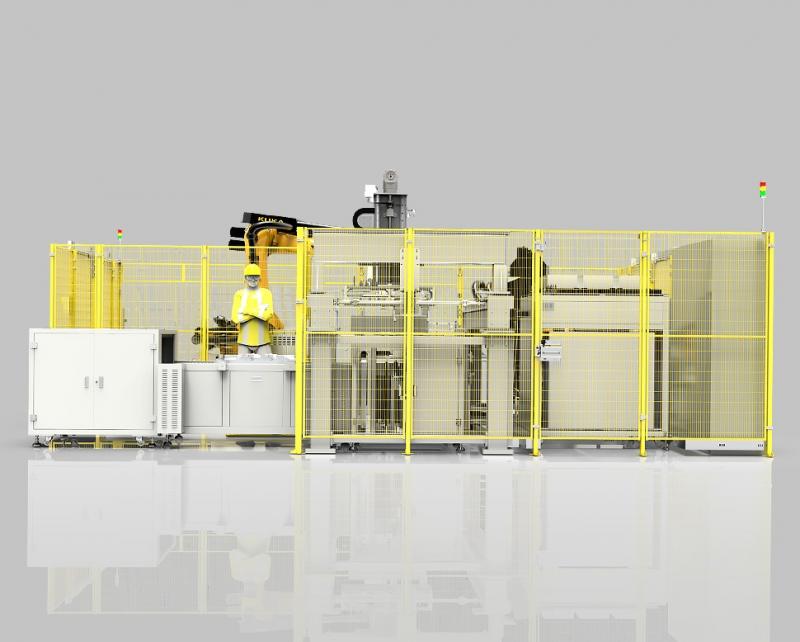

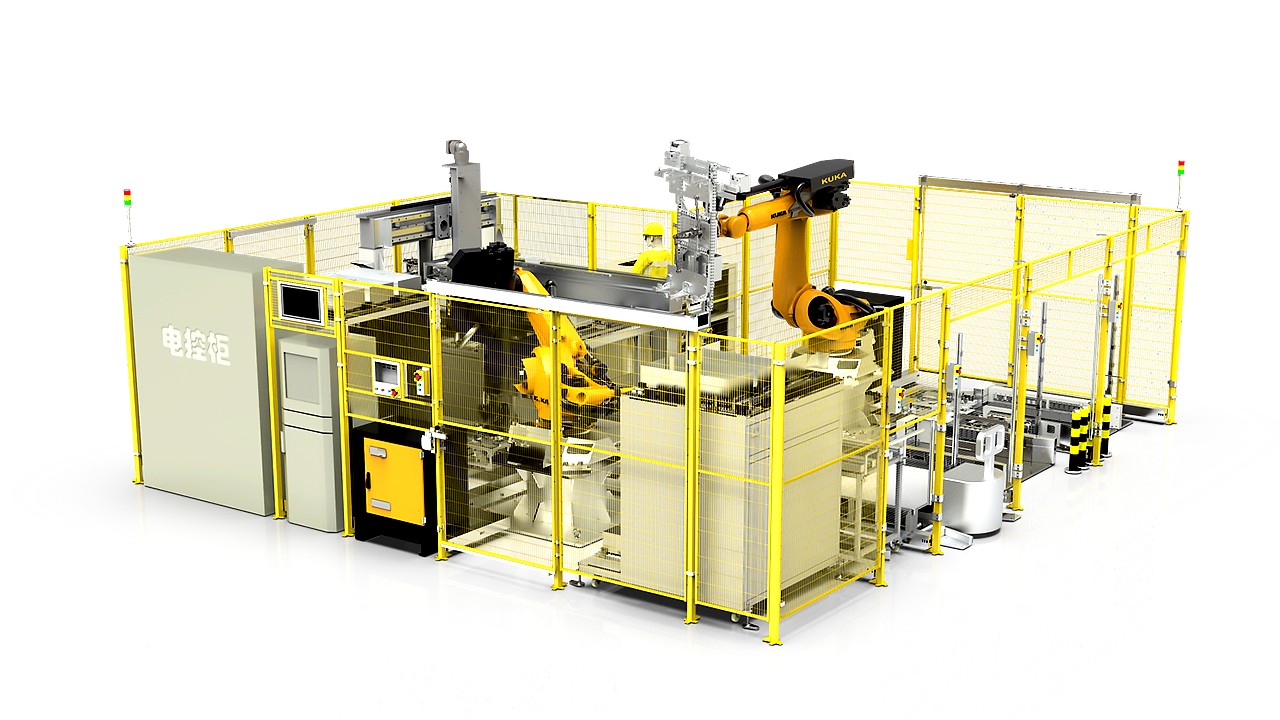

Square mold off-line system
- According to program settings, etc., automatically switch the position coordinates of the grasping program, and judge the safety status, etc.
- The coordinates of the system control cabinet and the judgment of the safety status, etc.
- Unified and centralized control by the system control cabinet (PLC).
Standard configuration
- Robot R1: responsible for confirming the position coordinates of the board line and putting the pallet into the roller line.
- Robot R2: Responsible for the handling of modules, placing the modules of the weighing platform on the pallet or in the buffer area.
- The gantry transplanting mechanism places the double-speed chain module on the weighing table.
- Automatic feeding and discharging of pallets (restocking without stopping).
- Module automatic weighing, buffering, NG nesting.
- Compatible with several pallet stacks, up to 7 layers, and the number of stacking layers can be set.
- Area monitoring, weighing data binding, can be interconnected with customer MES system.
PARAMETER FORM
Basic parameters
parameter value
Equipment size
8.0*6.0*2.5m
Single line capacity
2.5PPM
One-time excellent rate
≥99.5%
Failure rate
≤2%
mean time between failures
more than 4 hours
