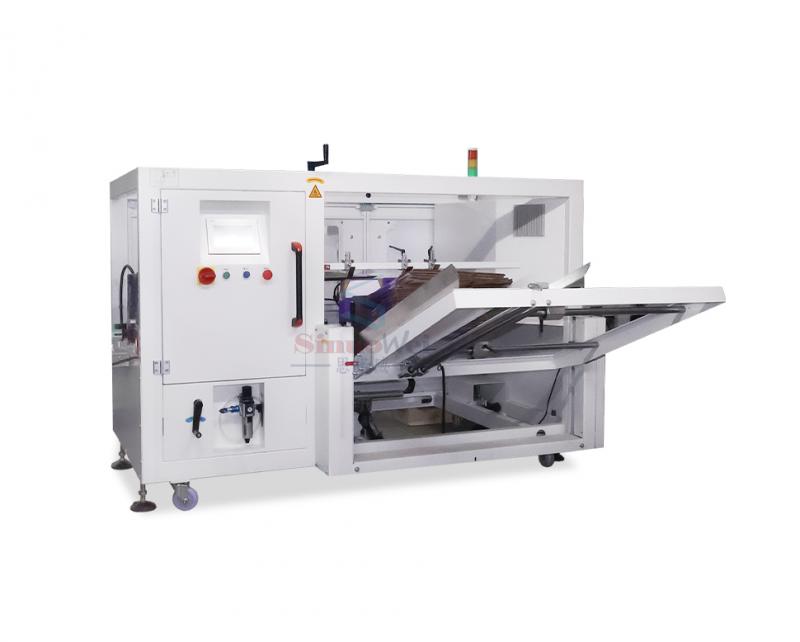

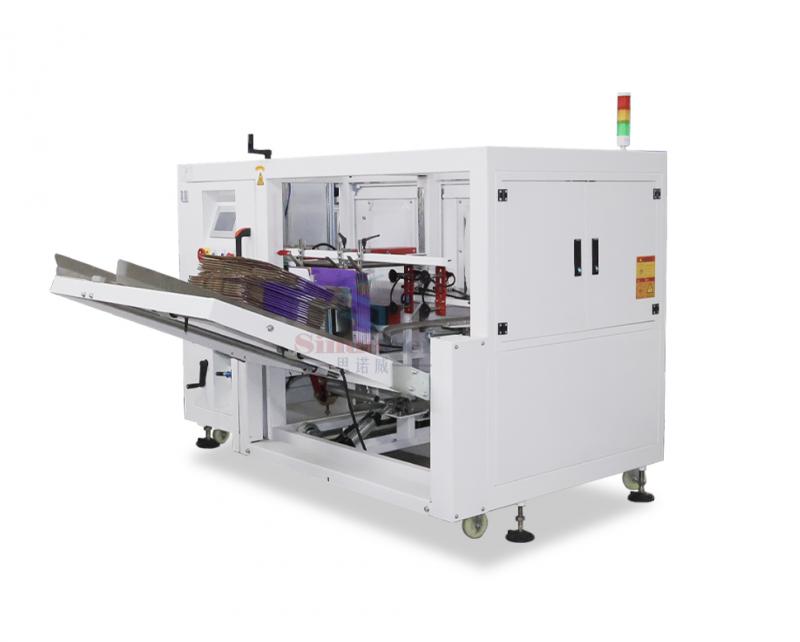

Automatic Case Erector Carton Erector Machine for Food

Food packaging bag edge folding and sealing machine is specifically designed for sealing food packaging bags.

The Automatic Food Packaging Line can achieve full-process automation from bagged products to boxing and palletizing. Operators only need to pour the food products into the feed tray, and the equipment will automatically complete tasks such as material alignment, boxing, sealing, and palletizing. This significantly enhances production efficiency, reduces labor costs, and ensures a high-speed, stable, and standardized packaging process.

This full-automatic carton sealer achieves full-process automation of carton alignment, flap folding and tape sealing. Compatible with multiple carton specifications, it ensures neat and firm sealing. Featuring easy operation, modular design for convenient maintenance and a compact footprint, it is suitable for production lines in food, e-commerce, logistics and other industries. It helps enterprises streamline packaging processes, reduce labor costs and enhance automated production efficiency. PARAMETER FORM Machine Name Automatic Case Sealer Overall Dimensions 1700*900*1510mm weight Approx. 90kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 20 carton/min Tape width 48-72mm Carton Sealing Tape Vertical forming Carton Specifications Customizable to customer requirements MACHINE SHOW

This Automatic Food Case Packer achieves full-process automation of product sorting, positioning and cartoning, compatible with various product and carton specifications. Featuring a compact structure and easy operation, it is suitable for production lines in food, daily chemical, e-commerce and other industries. It significantly reduces manual input, improves cartoning accuracy and efficiency, and helps enterprises upgrade their automated packaging lines. MACHINE SHOW

This equipment is used to realize the collaborative robot to clamp the palladium sheet and place it on the module tooling. Its structure mainly includes the collaborative robot, palladium sheet clamping mechanism, palladium sheet feeding mechanism, palladium sheet buffer mechanism, and CCD re-inspection system. CCD vision captures feature points and finds the placement position of the palladium sheet. After the palladium sheet is placed, it will be re-inspected by CCD vision to determine whether the placement of the palladium sheet is qualified to ensure the reliability of the next station. Product Parameters： Equipment name Fully Automatic Palladium Sheet Automatic Loading Machine Pressure 0.5-0.8MPa (72.5-116.0 PSI) Equipment size Designed according to customer requirements Equipment weight 2-5t Installation location： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Working cycle： 12ea-25s  26ea-45s Positioning accuracy： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Product compatibility： Length: 50mm-90mm and above Width: 30mm-50mmm and above Height: 5-10mm Equipment failure <0.3% Warranty period 1year Additional services Professional technical training Machine Show:

Power battery PACK automatic production line (AGV) 01 The lower cabinet is automatically online  02 Install the box connector 03 Reserved work space 04 Modules are automatically put into the box 05 Module pre-tightening 06 The module is automatically tightened 07 Install the collection harness 08 Install BDU 09 Soft connection fixed 10 Install the high-voltage wiring harness 11 BMS installation 12 reserved workstations 13 Connect the water cooling pipes 14 Water-cooled air tightness test 15 EOL test 16 DCR Test 1 17 DCR Test 2 18 Paste the sealing strip 19 Automatic upper cover installation 20 Pre-tighten the upper cover 21 The upper cover is automatically tightened 22 reserved workstations 23 The battery pack is offline.
