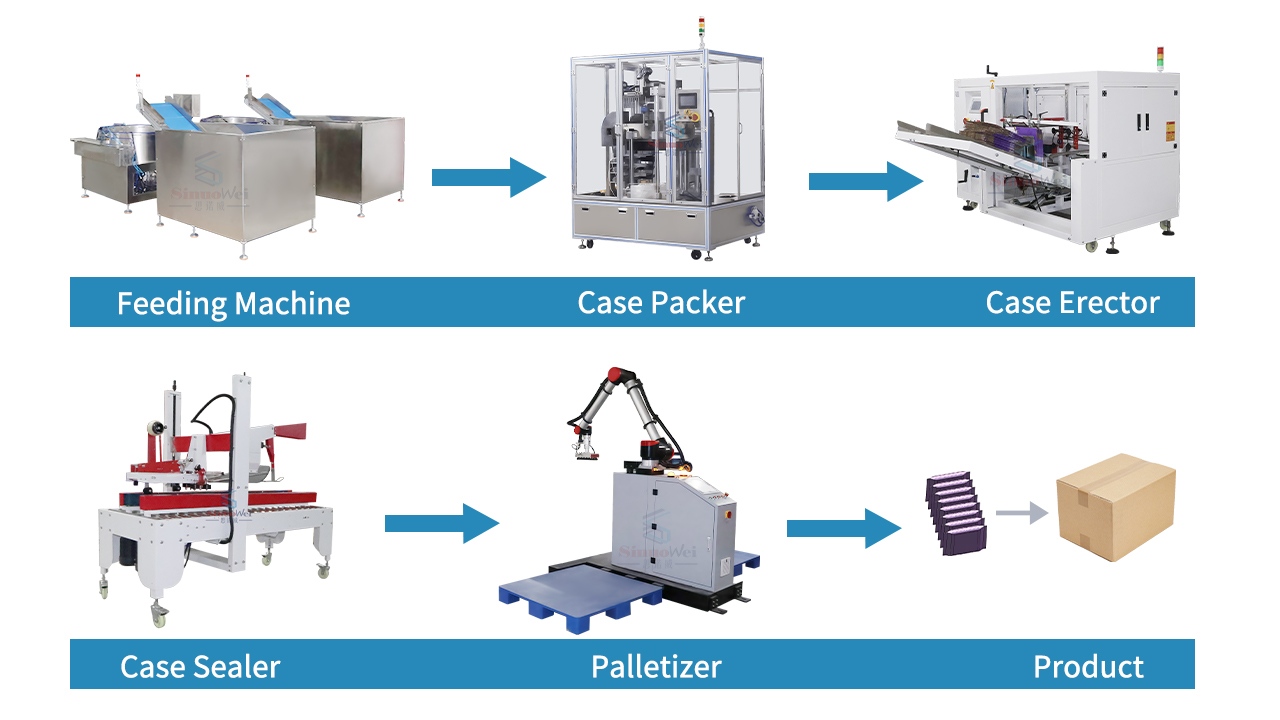

Food Packaging Line Secondary Packaging Machinery

This full-automatic Food Case Erector/ Carton Erector integrates carton storage, suction feeding, forming, bottom folding and sealing in one unit, ensuring firm and durable bonding. With a modular design, touch screen operation and fault self-diagnosis system, it is easy to operate and maintain, and occupies a small footprint. It can be flexibly integrated into production lines in food, e-commerce, logistics and other industries, significantly improving packaging efficiency, reducing labor costs, and empowering automated production. PARAMETER FORM Machine Name Automatic Case Erector Overall Dimensions 2050*1950*1500mm weight Approx. 400kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 6~10 carton/min Tape width 48-72mm Case Erecting method Vertical forming Carton Specifications Customizable to customer requirements

Food packaging bag edge folding and sealing machine is specifically designed for sealing food packaging bags.

This full-automatic carton sealer achieves full-process automation of carton alignment, flap folding and tape sealing. Compatible with multiple carton specifications, it ensures neat and firm sealing. Featuring easy operation, modular design for convenient maintenance and a compact footprint, it is suitable for production lines in food, e-commerce, logistics and other industries. It helps enterprises streamline packaging processes, reduce labor costs and enhance automated production efficiency. PARAMETER FORM Machine Name Automatic Case Sealer Overall Dimensions 1700*900*1510mm weight Approx. 90kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 20 carton/min Tape width 48-72mm Carton Sealing Tape Vertical forming Carton Specifications Customizable to customer requirements MACHINE SHOW

This Automatic Food Case Packer achieves full-process automation of product sorting, positioning and cartoning, compatible with various product and carton specifications. Featuring a compact structure and easy operation, it is suitable for production lines in food, daily chemical, e-commerce and other industries. It significantly reduces manual input, improves cartoning accuracy and efficiency, and helps enterprises upgrade their automated packaging lines. MACHINE SHOW

Robotic Laser Rotary Cutting Machine PARAMETER FORM Technical Parameter Value Arm span 1445mm/2036mm Power range 350A/400A/500/630A Repeat positioning accuracy 0.06mm/0.08mm Welding speed 500mm/min Robot ARC Welding Machine Directional development can be supported MACHINE SHOW SAMPLES CONTACT US Email:colin@xmsinuowei.com    Tel:+86 18150116901 Whatsapp:+86 18150116901

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of small materials. Parameter Form: Type S2PM-1100-P3 Axes 3+1 Payload 3kg Manipulator Weight 85kg Diameter 1100mm Repeatability Position 0.05mm Rotation 0.05° Maximum exercise frequency 500pp/min Rotation range ±360° Allowable maximum moment of inertia 31×10-4kg·m2 Angle range of actuated arm Up 32.5° Down 68.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.1kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55
