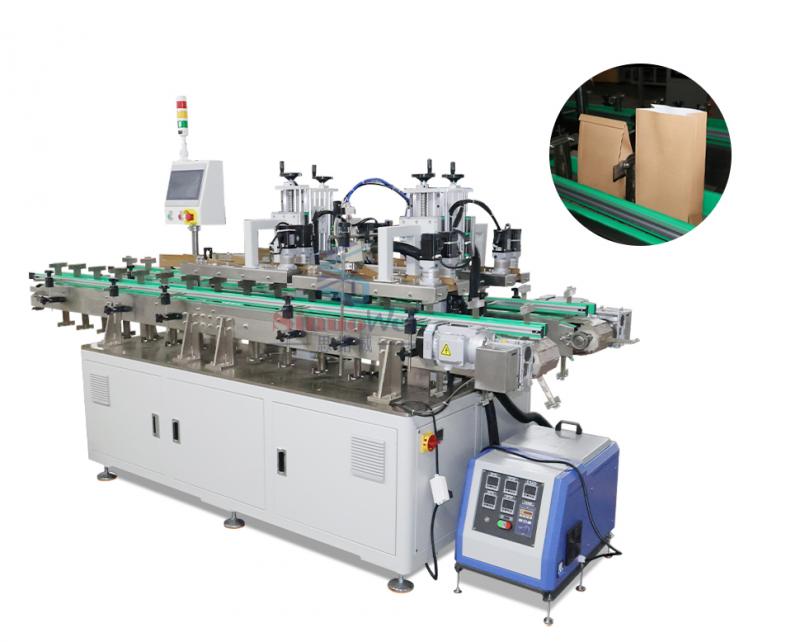

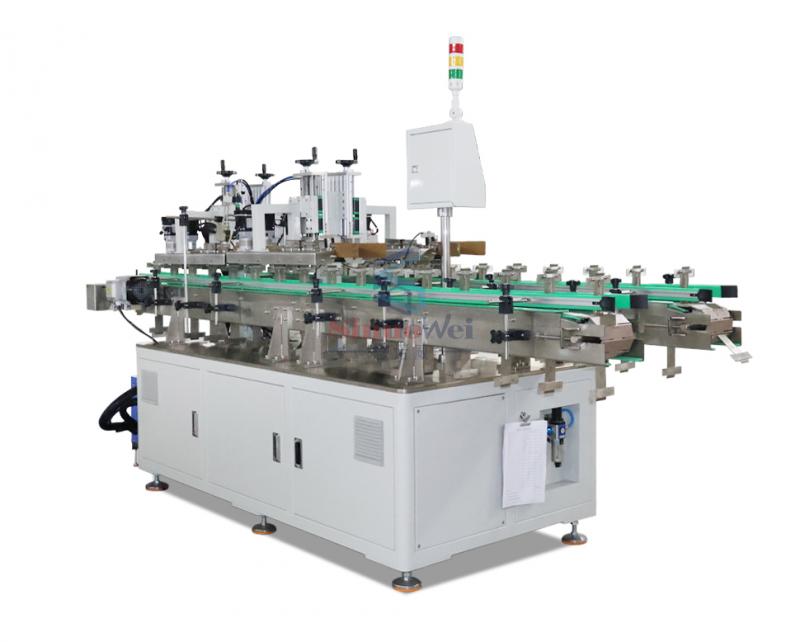

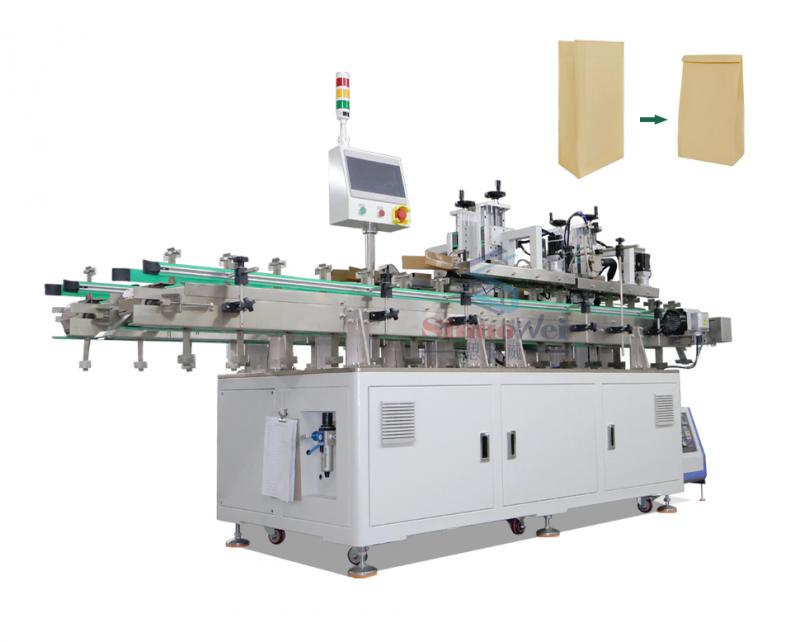

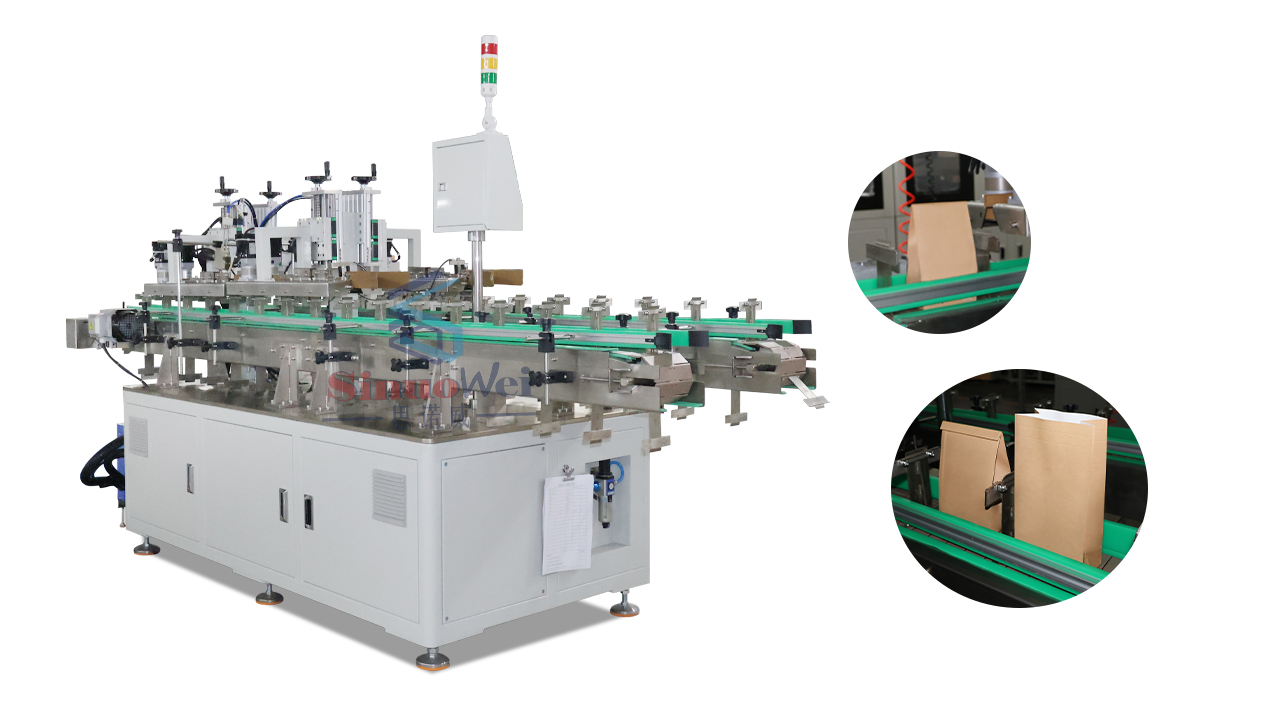

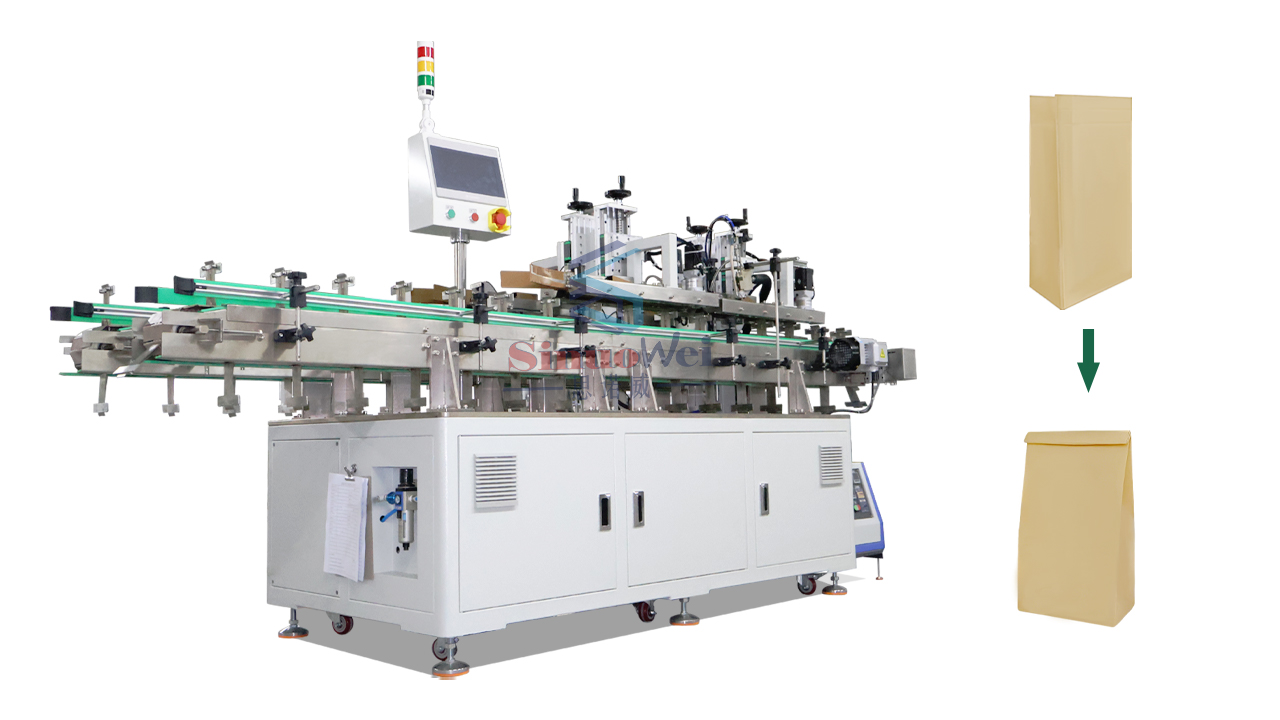

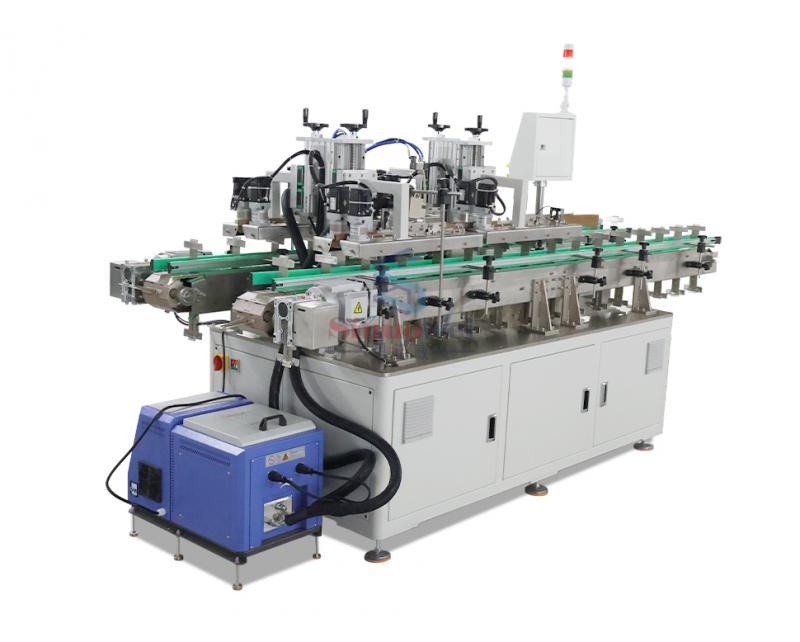

Food packaging bag edge folding and sealing machine

This full-automatic Food Case Erector/ Carton Erector integrates carton storage, suction feeding, forming, bottom folding and sealing in one unit, ensuring firm and durable bonding. With a modular design, touch screen operation and fault self-diagnosis system, it is easy to operate and maintain, and occupies a small footprint. It can be flexibly integrated into production lines in food, e-commerce, logistics and other industries, significantly improving packaging efficiency, reducing labor costs, and empowering automated production. PARAMETER FORM Machine Name Automatic Case Erector Overall Dimensions 2050*1950*1500mm weight Approx. 400kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 6~10 carton/min Tape width 48-72mm Case Erecting method Vertical forming Carton Specifications Customizable to customer requirements

The Automatic Food Packaging Line can achieve full-process automation from bagged products to boxing and palletizing. Operators only need to pour the food products into the feed tray, and the equipment will automatically complete tasks such as material alignment, boxing, sealing, and palletizing. This significantly enhances production efficiency, reduces labor costs, and ensures a high-speed, stable, and standardized packaging process.

This full-automatic carton sealer achieves full-process automation of carton alignment, flap folding and tape sealing. Compatible with multiple carton specifications, it ensures neat and firm sealing. Featuring easy operation, modular design for convenient maintenance and a compact footprint, it is suitable for production lines in food, e-commerce, logistics and other industries. It helps enterprises streamline packaging processes, reduce labor costs and enhance automated production efficiency. PARAMETER FORM Machine Name Automatic Case Sealer Overall Dimensions 1700*900*1510mm weight Approx. 90kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 20 carton/min Tape width 48-72mm Carton Sealing Tape Vertical forming Carton Specifications Customizable to customer requirements MACHINE SHOW

This Automatic Food Case Packer achieves full-process automation of product sorting, positioning and cartoning, compatible with various product and carton specifications. Featuring a compact structure and easy operation, it is suitable for production lines in food, daily chemical, e-commerce and other industries. It significantly reduces manual input, improves cartoning accuracy and efficiency, and helps enterprises upgrade their automated packaging lines. MACHINE SHOW

Automatic Reciprocating Machine Features: with upper and lower limit automatic protection function (1)Choose full Chinese digital display frequency conversion control system, easy to operate, easy to understand and learn. (2)Non-wearing single-phase motor drive, simple maintenance. (3)Stroke and number can be changed at any time according to the demand of workpiece. (4)The whole machine is sprayed with plastic, and with tank track to take in and put out the pipeline. (5)Suitable for powder spraying and painting and other high requirement spraying. (6)Sound control program to ensure accurate positioning. (7)Suitable for spraying workpieces in various complex environments and high process parameters. Technical Characteristics and Detailed Analysis: Painting special elevator is by the variable speed motor, high-speed guide, automatic frequency converter, positioner and other systems can be up and down reciprocating automatic spraying equipment. Automatic spray gun mounted on the end of the fixed bracket (single side can be installed 2-6 guns) spraying, according to the pre-programmed reciprocating spraying. 1、the speed is stepless adjustable (positive, return respectively adjustable), touch screen monitor, using digital display equipment operating conditions, operating methods and fault alarm and other functions. 2, can store 5 spraying guns. 2、can store 5 spraying workpiece process data. Power failure can be maintained for three years without re-entry process data. 3、Spraying workpiece can be sprayed at up to forty speeds and time delays during the lift stroke, thus improving the spraying quality of complex sprayed parts. 4、Optional control system can be linked with the conveyor chain and spray gun.

Robot ARC Welding Machine PARAMATER FORM Technical Parameter Value Arm span 1445mm/2036mm Power range 350A/400A/500/630A Repeat positioning accuracy 0.06mm/0.08mm Welding speed 500mm/min Robot ARC Welding Machine Directional development can be supported MACHINE SHOW SAMPLES CONTACT US Email:colin@xmsinuowei.com    Tel:+86 18150116901 Whatsapp:+86 18150116901
