British Hose Clamp Machine is currently the highest production of different types and sizes of hose clamps in the world degree of automation machinery . Our machines are non-standard customized products, which have the advantages of standardized production, lowest defect rate, higher final product quality and lower labor costs.

Quartz Clock Movements Machine is the most automation to manufacture different types and sizes of Clock Movement in the world so far. Our machine is non-standard customized product,with these advantages just like standardized production,lowest defect rate,higher end product quality and lower labor cost.

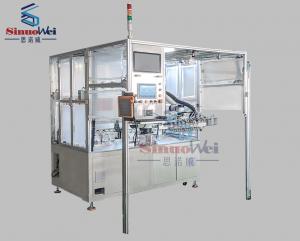

This equipment is used to realize the collaborative robot to clamp the palladium sheet and place it on the module tooling. Its structure mainly includes the collaborative robot, palladium sheet clamping mechanism, palladium sheet feeding mechanism, palladium sheet buffer mechanism, and CCD re-inspection system. CCD vision captures feature points and finds the placement position of the palladium sheet. After the palladium sheet is placed, it will be re-inspected by CCD vision to determine whether the placement of the palladium sheet is qualified to ensure the reliability of the next station. Product Parameters： Equipment name Fully Automatic Palladium Sheet Automatic Loading Machine Pressure 0.5-0.8MPa (72.5-116.0 PSI) Equipment size Designed according to customer requirements Equipment weight 2-5t Installation location： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Working cycle： 12ea-25s  26ea-45s Positioning accuracy： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Product compatibility： Length: 50mm-90mm and above Width: 30mm-50mmm and above Height: 5-10mm Equipment failure <0.3% Warranty period 1year Additional services Professional technical training Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-20-S Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2200mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-30-G Payload 30kg Working space radius 1460mm Palletizing height Fixed type H=1600mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.3KW Power supply 1PH 220v/50Hz Weight ≈370Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-40-G Payload 40kg Working space radius 1900mm Palletizing height Fixed type H=2000mm Speed ≤10pcs/min Repeatability accuracy ±0.05mm Air consumption 600-800L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 6.5KW Power supply 1PH 220v/50Hz Weight ≈600Kg Footprint 2034×1700mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:
