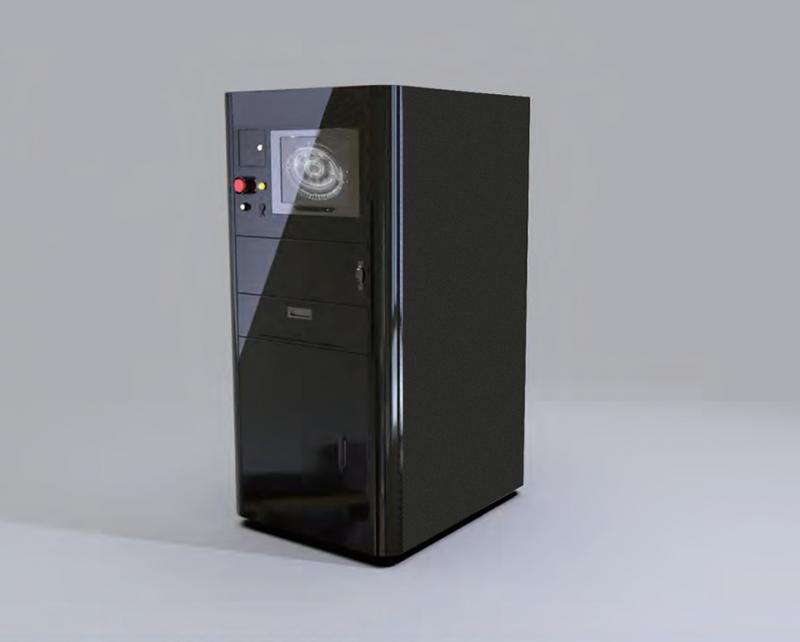

Metal 3D Printer-SDP-120E

The processing size of the SDP-120E intelligent metal 3D forming equipment is 120 * 120 * 100mm. It is a customized equipment designed by Sinuowei Automation to promote additive manufacturing in the education industry, in combination with the needs of the education industry. This device has an efficient and original powder supply and cleaning design, combined with a complete set of independently developed intelligent data processing software. Users can adjust the device parameters independently and flexibly choose metal materials. This equipment has a high degree of specialization and cost-effectiveness, and is suitable for various needs in the education industry.

Products description

3D printer-SDP-120E


The processing size of the SDP-120E intelligent metal 3D forming equipment is 120 * 120 * 100mm. It is a customized equipment designed by Sinuowei Automation to promote additive manufacturing in the education industry, in combination with the needs of the education industry. This device has an efficient and original powder supply and cleaning design, combined with a complete set of independently developed intelligent data processing software. Users can adjust the device parameters independently and flexibly choose metal materials. This equipment has a high degree of specialization and cost-effectiveness, and is suitable for various needs in the education industry.

PARAMETER FORM

Technical Parameters

Value

Size

(W×D×H)1215mm×940mm×1925mm

Weight

900kg

Maximum molding size

120mm×120mm×100mm

Maximum powder feeding volume

150mmx120mmx 100mm

Powder layer thickness

30μm(20μm~100μm User adjustable)

Minimum processing size

200μm

Forming rate

5-20cm3/h

Scanning speed

7m/s

Scanner

Dynamic focusing, high-precision laser galvanometer scanning system

Laser

200W continuous laser

Laser spot diameter

<50 μm

Maximum reservation temperature

200℃

Minimum oxygen content

≤100PPM

Power requirements

220VAC、50/60HZ. 2KVA、Single-phase three-wire


Powder spreading tool

High-performance heat-resistant ceramic/silicone rubber sheet

Powder delivery method

Single-cylinder powder feeding, one-way powder spreading

Inert gas supply

Ar/N2

Gas consumption

4L/h (printing process)

Operating system

Windows7

Data format

STL

Printing materials

Titanium alloy, aluminum alloy, copper alloy, cobalt chromium alloy, stainless steel, die steel, etc.


How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.

CONTACT US

Email:colin@xmsinuowei.com    Tel:+86 18150116901

Whatsapp:+86 18150116901





GET IN TOUCH

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Product

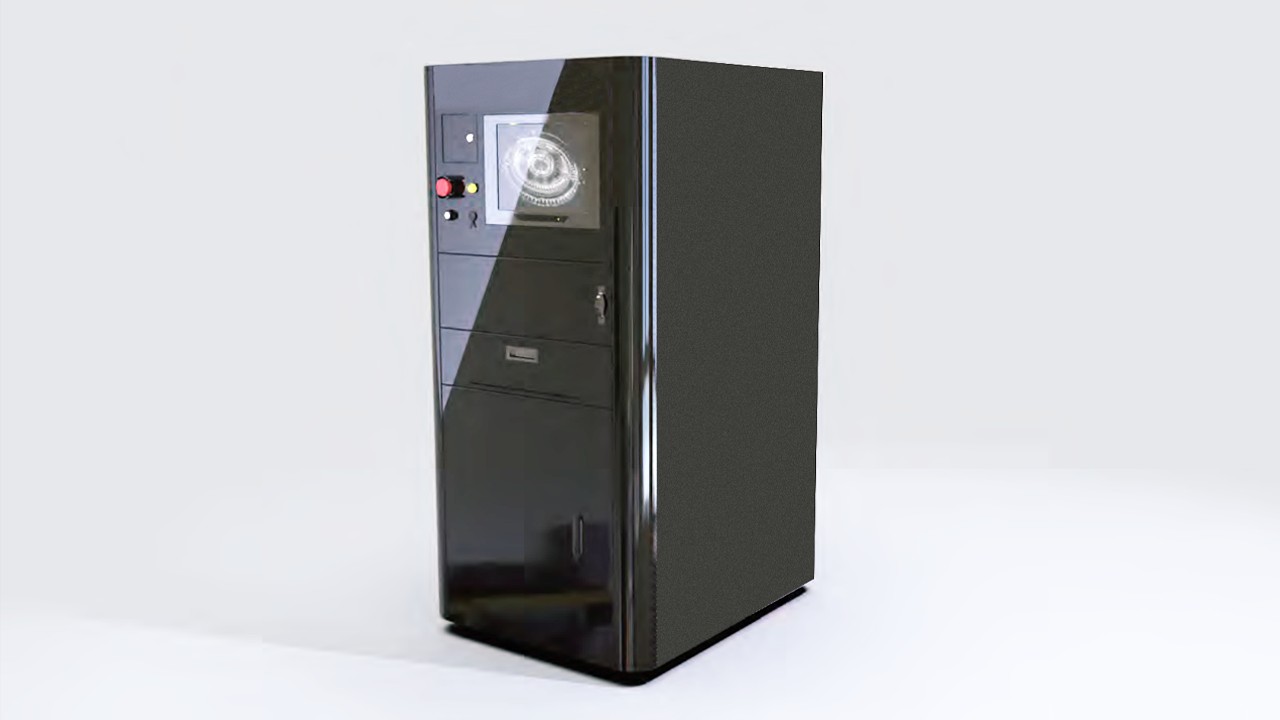

3D Metal Printer-SDP-120P
