3D Printer-SDP-120T

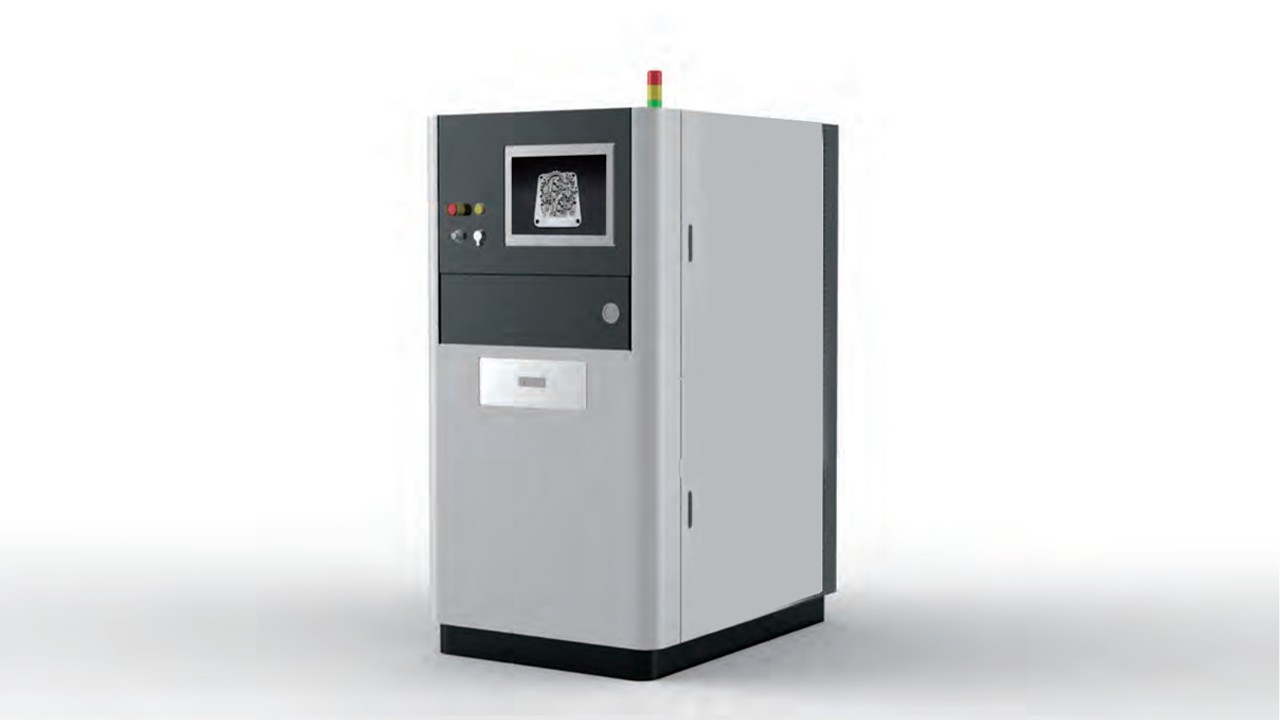

The processing size of the SDP-120P intelligent metal 3D forming equipment is 120 * 120 * 100mm, using a 200W fiber laser, equipped with a dynamic focusing, high-precision laser galvanometer scanning system, with an intuitive user interface, open and standardized intelligent software, and improved filtering system. It can provide multiple production process optimization paths, with outstanding advantages, and can meet customer needs faster, more flexible, and more cost-effective.

The processing size of the SDP-120E intelligent metal 3D forming equipment is 120 * 120 * 100mm. It is a customized equipment designed by Sinuowei Automation to promote additive manufacturing in the education industry, in combination with the needs of the education industry. This device has an efficient and original powder supply and cleaning design, combined with a complete set of independently developed intelligent data processing software. Users can adjust the device parameters independently and flexibly choose metal materials. This equipment has a high degree of specialization and cost-effectiveness, and is suitable for various needs in the education industry.

The processing size of the SDP-300 intelligent metal 3D forming equipment is 300 x 300 x 400mm, with a large volume forming size combined with efficient original powder supply and cleaning design. Combined with a fully developed intelligent data processing software, users can independently adjust equipment parameters and flexibly choose metal materials, greatly improving production capacity and work efficiency, and promoting further industrialization of metal additive manufacturing.

This equipment is used to realize the collaborative robot to clamp the palladium sheet and place it on the module tooling. Its structure mainly includes the collaborative robot, palladium sheet clamping mechanism, palladium sheet feeding mechanism, palladium sheet buffer mechanism, and CCD re-inspection system. CCD vision captures feature points and finds the placement position of the palladium sheet. After the palladium sheet is placed, it will be re-inspected by CCD vision to determine whether the placement of the palladium sheet is qualified to ensure the reliability of the next station. Product Parameters： Equipment name Fully Automatic Palladium Sheet Automatic Loading Machine Pressure 0.5-0.8MPa (72.5-116.0 PSI) Equipment size Designed according to customer requirements Equipment weight 2-5t Installation location： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Working cycle： 12ea-25s  26ea-45s Positioning accuracy： dust-free workshop, equipment noise index ≤75dB, copper, nickel and zinc prohibited Product compatibility： Length: 50mm-90mm and above Width: 30mm-50mmm and above Height: 5-10mm Equipment failure <0.3% Warranty period 1year Additional services Professional technical training Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-30-S Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2100mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Hose clamp machine can assemble hose clamp full-automatically, through straight lines and turntables. All the parts such as screws, coupling strip, clip and hosing will be assembled of rolling and locking forming by machine. Double Station make sure higher productivity.
