Automatic food secondary packaging line for factory

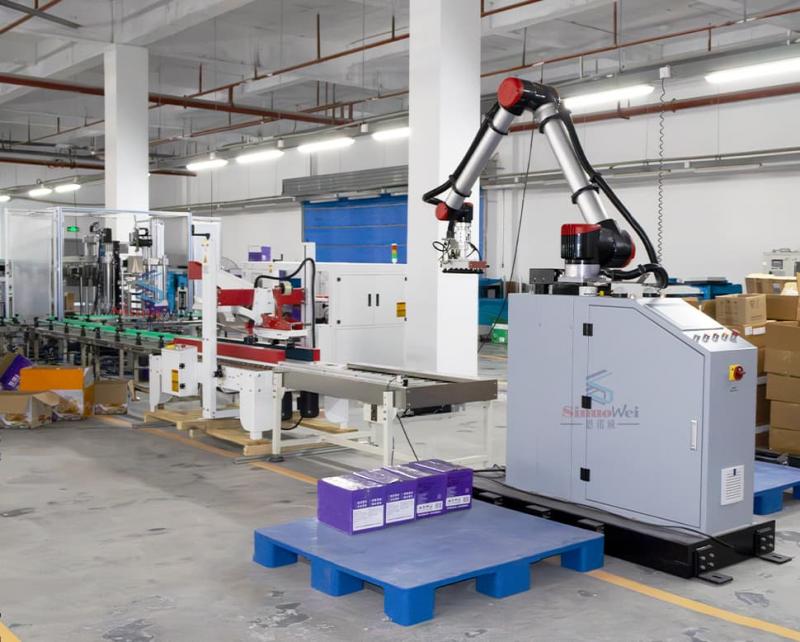

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-20-S Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2200mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: High-speed parallel robots adopt advanced parallel configuration design and are equipped with high-precision machine vision systems, which can meet the needs of efficient and accurate industrial processes. Delta robots are ideal for high-speed production in food and medicine industry. Widely used in assembly, handling and pick-and-place of heavy materials. Parameter Form: Type S2PM-1600-P15 Axes 3+1 Payload 15kg Manipulator Weight 131kg Diameter 1600mm Repeatability Position 0.05mm Rotation 0.025° Maximum exercise frequency 300pp/min Rotation range ±360° Allowable maximum moment of inertia 0.224kg·m2 Angle range of actuated arm Up 23° Down 71.5° Power supply 3ph 380VAC -10%～+10%，49-61HZ Power capacity 10KVA Rated Power 6.2kw Storage temperature -10℃～70℃ Work environment -10℃～50℃，RH≤80% Protection IP55

This full-automatic Food Case Erector/ Carton Erector integrates carton storage, suction feeding, forming, bottom folding and sealing in one unit, ensuring firm and durable bonding. With a modular design, touch screen operation and fault self-diagnosis system, it is easy to operate and maintain, and occupies a small footprint. It can be flexibly integrated into production lines in food, e-commerce, logistics and other industries, significantly improving packaging efficiency, reducing labor costs, and empowering automated production. PARAMETER FORM Machine Name Automatic Case Erector Overall Dimensions 2050*1950*1500mm weight Approx. 400kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 6~10 carton/min Tape width 48-72mm Case Erecting method Vertical forming Carton Specifications Customizable to customer requirements

Food packaging bag edge folding and sealing machine is specifically designed for sealing food packaging bags.

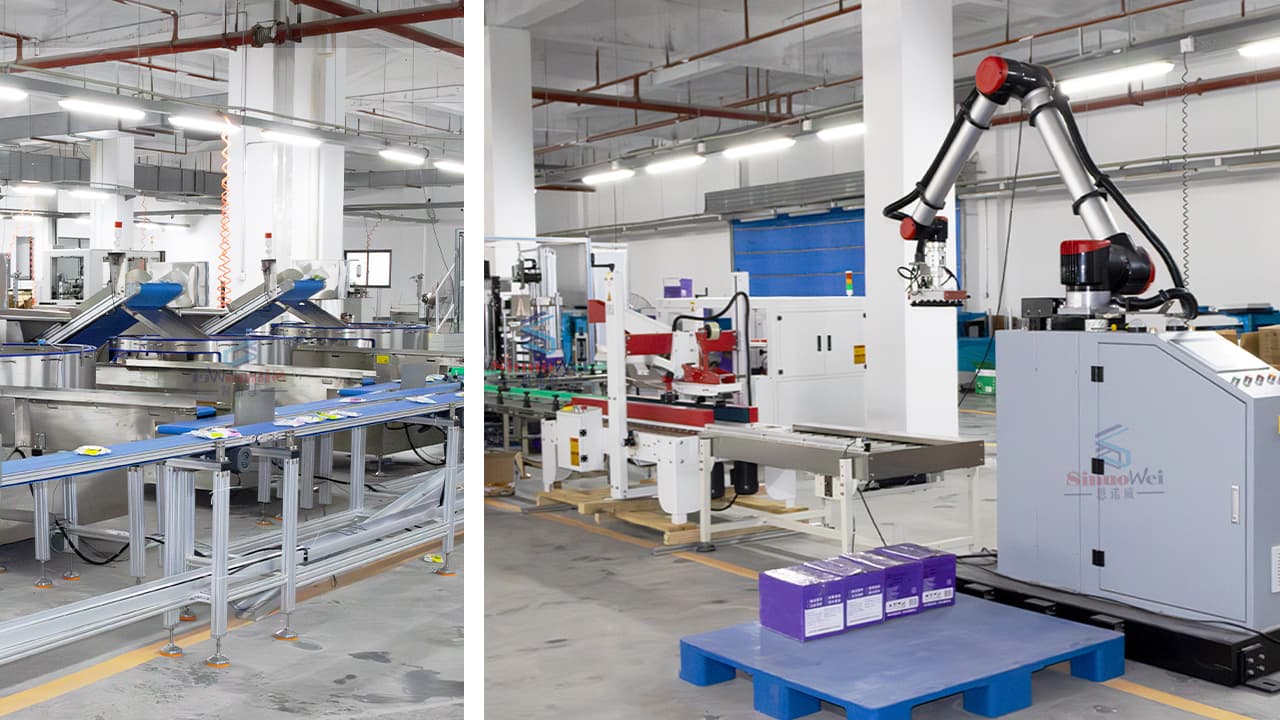

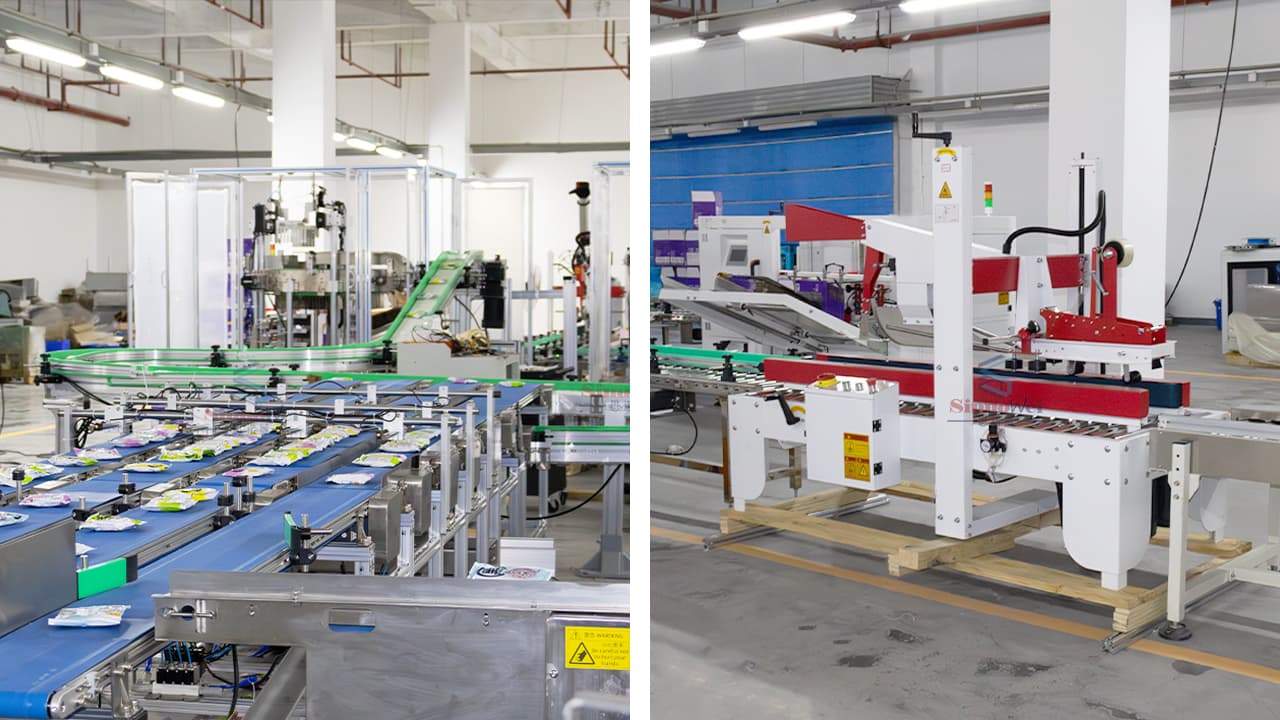

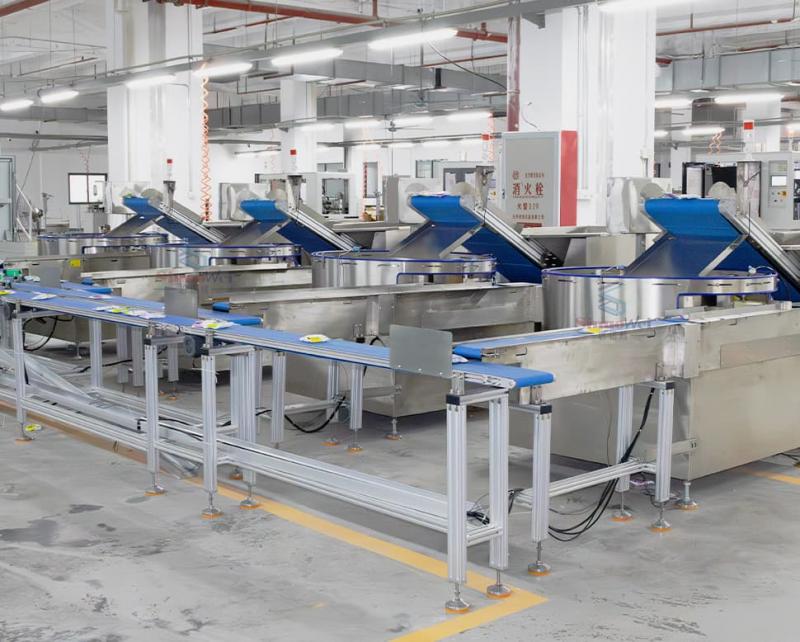

The Automatic Food Packaging Line can achieve full-process automation from bagged products to boxing and palletizing. Operators only need to pour the food products into the feed tray, and the equipment will automatically complete tasks such as material alignment, boxing, sealing, and palletizing. This significantly enhances production efficiency, reduces labor costs, and ensures a high-speed, stable, and standardized packaging process.

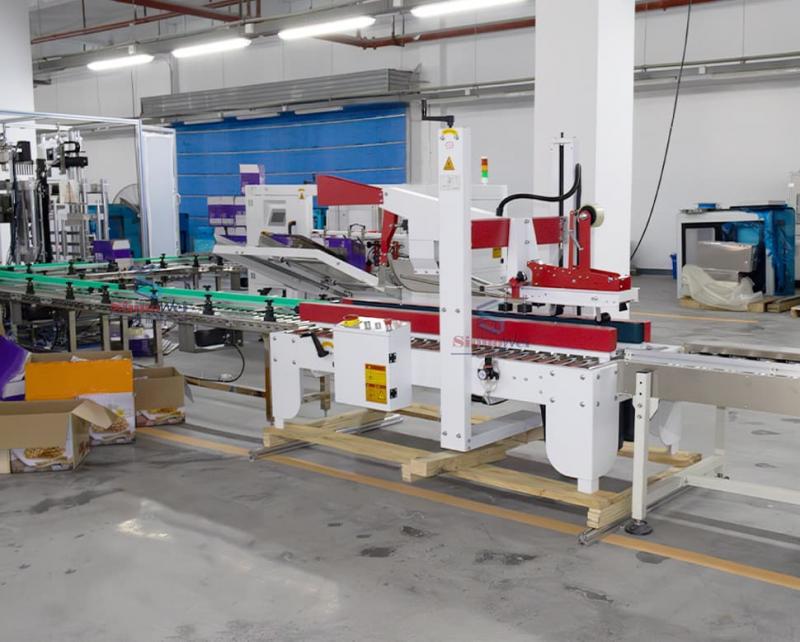

This full-automatic carton sealer achieves full-process automation of carton alignment, flap folding and tape sealing. Compatible with multiple carton specifications, it ensures neat and firm sealing. Featuring easy operation, modular design for convenient maintenance and a compact footprint, it is suitable for production lines in food, e-commerce, logistics and other industries. It helps enterprises streamline packaging processes, reduce labor costs and enhance automated production efficiency. PARAMETER FORM Machine Name Automatic Case Sealer Overall Dimensions 1700*900*1510mm weight Approx. 90kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 20 carton/min Tape width 48-72mm Carton Sealing Tape Vertical forming Carton Specifications Customizable to customer requirements MACHINE SHOW
