Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Parameters Installation space (L×W×H) 3940×3085×2000mm(length can be adjusted according to the actual scene) External dimensions of the fence (L×W×H) 3840×2985×2000mm (length can be adjusted according to the actual scene) Gratings 2 groups Grating detection height 145-1370mm Grating detection length 2000mm Grating transmitter installation position Collaborative base Grating receiver installation position Fence post Communication IO(NPN) Temperature 0-50℃ Max power 6-16W Working power DC 24V±10% Post color RAL1023 Stencil color RAL9017 Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2300mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈390Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Payload 30kg Working space radius 1460mm Palletizing height Lifting type H=2300mm Speed ≤7pcs/min Repeatability accuracy ±0.04mm Air consumption 300-500L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 4KW Power supply 1PH 220v/50Hz Weight ≈390Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

Product Introduction: Visual programming, simple and efficient, you can master the programming method in half an hour, and complete simple programming in 1 hour. Lightweight and flexible, small footprint, simple deployment. Widely used in food, medicine, 3C, daily chemicals, printing and other industries.   Support non-standard customization. Parameter Form: Model SNW-20-S Payload 20kg Working space radius 1600mm Palletizing height  Lifting type H=2200mm Speed ≤9pcs/min Repeatability accuracy ±0.04mm Air consumption 240-460L/min Communication EtherCAT、IO IP rating IP54 Temperature 0-50℃ Max power 3.8KW Power supply 1PH 220v/50Hz Weight ≈440Kg Footprint 1973×1488mm * Palletizable box size  L(100-500mm) ,  W(100-500mm) ， H(110-500mm) Machine Show:

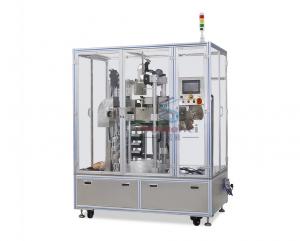

This Automatic Food Case Packer achieves full-process automation of product sorting, positioning and cartoning, compatible with various product and carton specifications. Featuring a compact structure and easy operation, it is suitable for production lines in food, daily chemical, e-commerce and other industries. It significantly reduces manual input, improves cartoning accuracy and efficiency, and helps enterprises upgrade their automated packaging lines. MACHINE SHOW

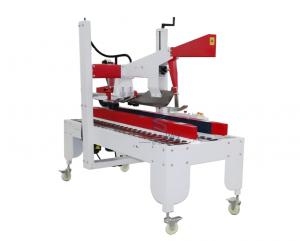

This full-automatic carton sealer achieves full-process automation of carton alignment, flap folding and tape sealing. Compatible with multiple carton specifications, it ensures neat and firm sealing. Featuring easy operation, modular design for convenient maintenance and a compact footprint, it is suitable for production lines in food, e-commerce, logistics and other industries. It helps enterprises streamline packaging processes, reduce labor costs and enhance automated production efficiency. PARAMETER FORM Machine Name Automatic Case Sealer Overall Dimensions 1700*900*1510mm weight Approx. 90kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 20 carton/min Tape width 48-72mm Carton Sealing Tape Vertical forming Carton Specifications Customizable to customer requirements MACHINE SHOW

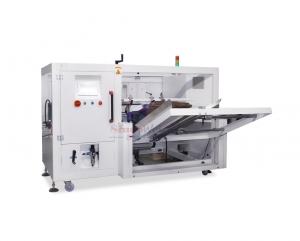

This full-automatic Food Case Erector/ Carton Erector integrates carton storage, suction feeding, forming, bottom folding and sealing in one unit, ensuring firm and durable bonding. With a modular design, touch screen operation and fault self-diagnosis system, it is easy to operate and maintain, and occupies a small footprint. It can be flexibly integrated into production lines in food, e-commerce, logistics and other industries, significantly improving packaging efficiency, reducing labor costs, and empowering automated production. PARAMETER FORM Machine Name Automatic Case Erector Overall Dimensions 2050*1950*1500mm weight Approx. 400kg Power Supply 220V 50Hz 400W Air Supply 0.4-0.6 MPa Speed 6~10 carton/min Tape width 48-72mm Case Erecting method Vertical forming Carton Specifications Customizable to customer requirements

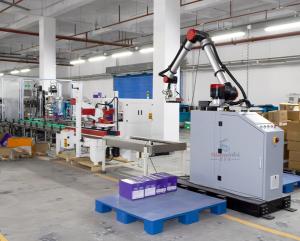

The Automatic Food Packaging Line can achieve full-process automation from bagged products to boxing and palletizing. Operators only need to pour the food products into the feed tray, and the equipment will automatically complete tasks such as material alignment, boxing, sealing, and palletizing. This significantly enhances production efficiency, reduces labor costs, and ensures a high-speed, stable, and standardized packaging process.

Food packaging bag edge folding and sealing machine is specifically designed for sealing food packaging bags.
